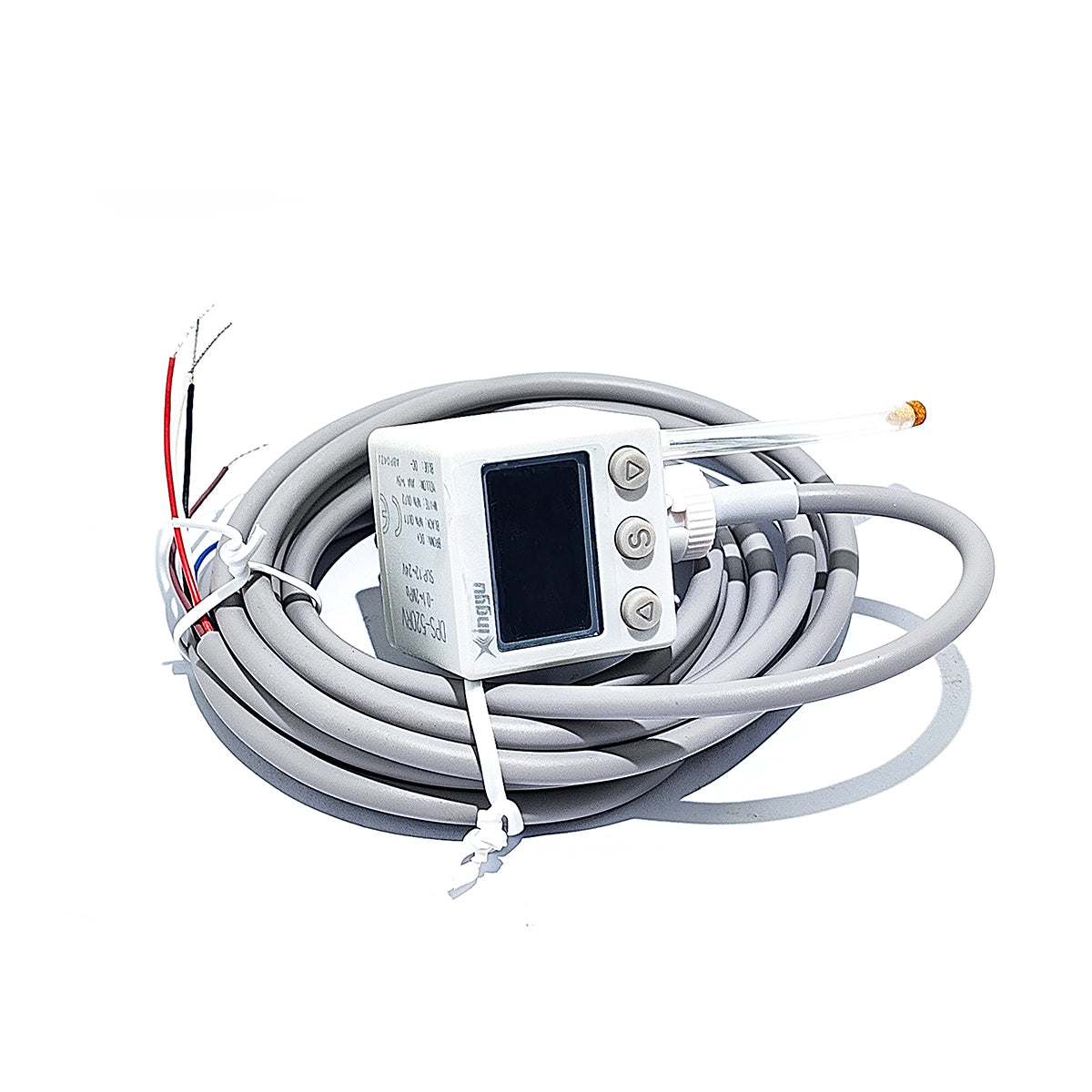

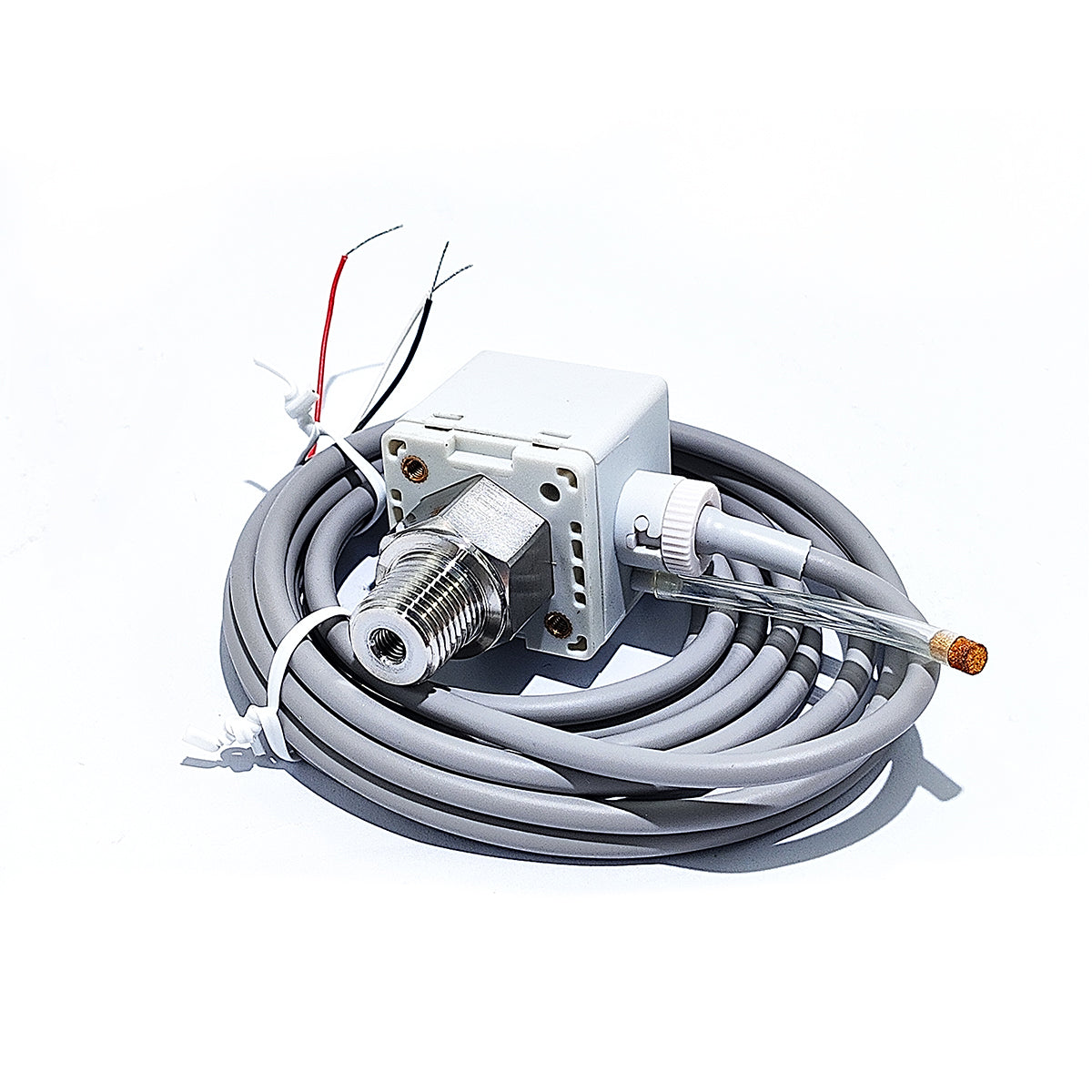

DPS-5 Series L&T Digital Pressure Sensor Pressure Switch with LCD Display

DPS-520RV (Dual NPN Output)
Measuring Range: 0 ~ 2.0 MPa (0~2000 kPa)
Pressure Rating: 3.0 MPa
Supply Voltage: DC 24 V ±10%
Output Signal: Dual NPN open-collector, 80 mA max
Measurement Accuracy: ≤±2% FS (at 25°C)
Response Time: ≤20 ms
Display: Two-line backlit LCD digital display with multi-unit switching
Operating Modes: Three modes—Single-point, Hysteresis, and Window Alarm
Pressure Connection: G1/4 male thread
Mounting Method: DIN rail snap-on
Operating Environment: 0–50°C, 35–95% RH (non-condensing)
Protection Rating: IP40

Compatible with Flat Fiber Optic Cutting Machines, All-in-One Sheet Metal and Tube Laser Cutters
