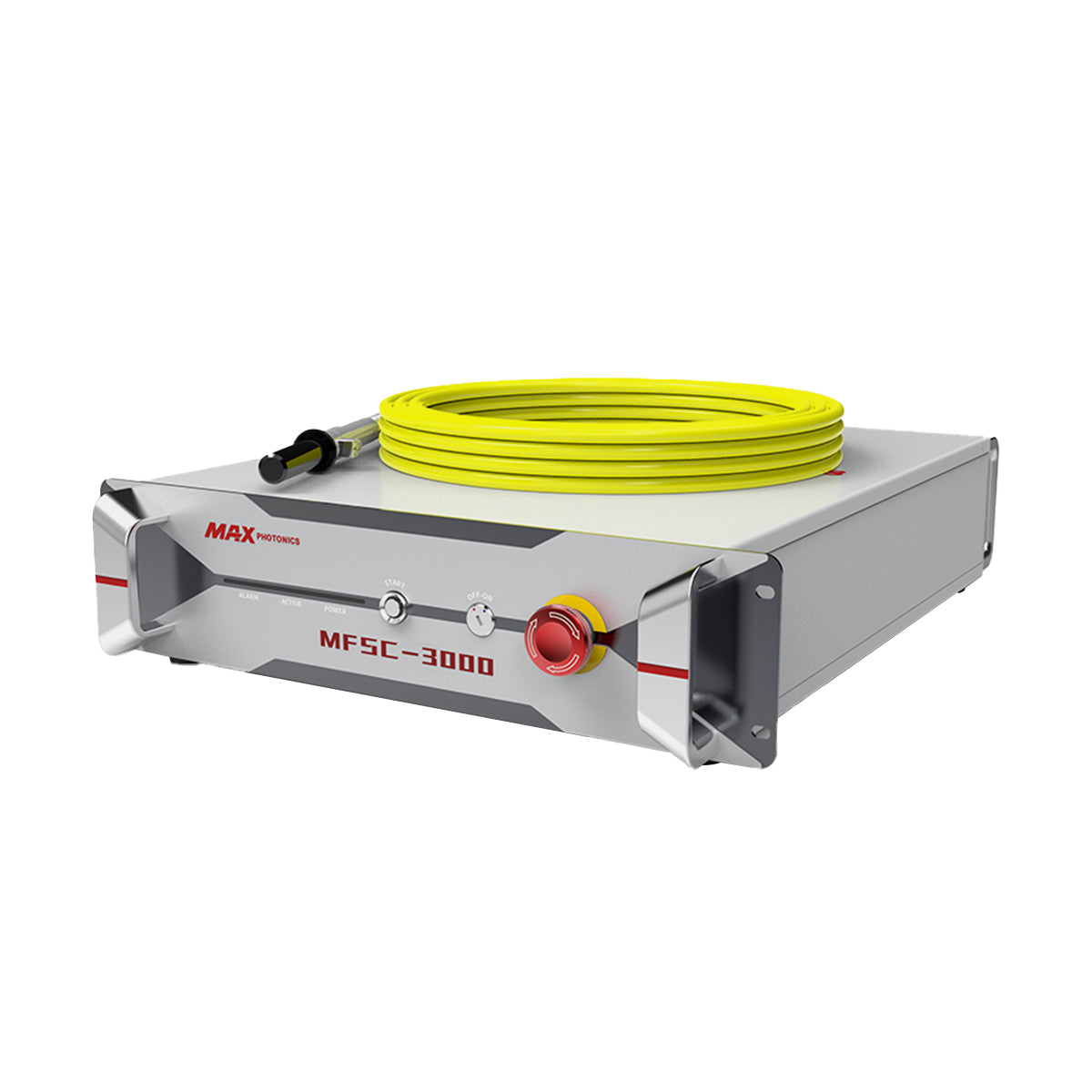

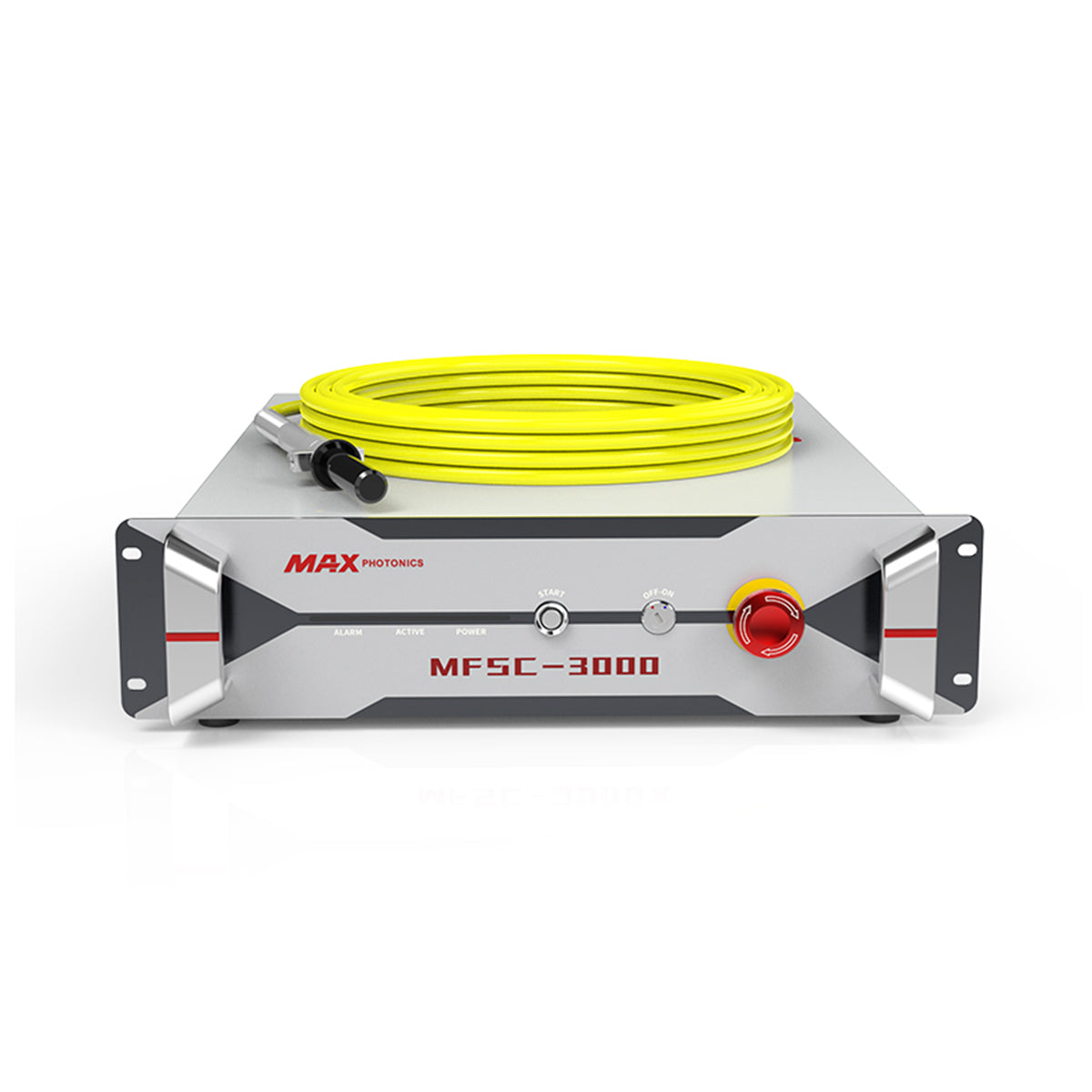

3000W-MAX Photonics High Power MFSC-6000C Fiber Laser Source

✅ Genuine MAX single‑module laser, CE certified for global export.
✅ Excellent ±1% short‑term power stability, consistent cutting quality for mass‑production.
✅ Superior BPP 1.1‑1.5, fast piercing, clean cutting edge with low dross.
✅ Up to 20kHz high‑speed modulation, outstanding performance for thin‑sheet high‑speed cutting.
✅ ≥40% electro‑optical efficiency, energy‑saving & low operating cost.
✅ Built‑in red‑dot aiming, anti‑reflection protection, maintenance‑free for non‑stop workshop operation

Model: MFSC-3000W QBH

Rated Output Power: 3000 W
Center Wavelength: 1080 ± 10 nm
Power Stability: ±1% (short-term), ±2% (long-term)
Maximum Modulation Frequency: 20 kHz
Beam Quality (BPP): 1.1–1.5 mm·mrad (50 μm, QBH)
Output Fiber Core Diameter: 50 μm
Red light indicator: 200 μW
Output connector: Standard QBH
Fiber cable length: 20 m
Electrical Controls
Power supply: 380–400 V ±10%, three-phase 50/60 Hz
Power adjustment: 10–100%, continuously adjustable
Control interfaces: RS232, AD analog, Ethernet
Electro-optical conversion efficiency: ≥40%

Compatible with Flat Fiber Laser Cutting Machines, Compact Sheet-and-Tube Cutting Machines, Robotic 3D Cutting Workstations

Model: MFSC-3000W G5

Rated Output Power: 3000 W
Center Wavelength: 1080 ± 10 nm
Power Stability: ±1% (short-term), ±2% (long-term)
Maximum Modulation Frequency: 20 kHz
Beam Quality (BPP): 1.1–1.5 mm·mrad (50 μm, QBH)
Output Fiber Core Diameter: 50 μm
Red indicator: 200 μW
Output connector: G5
Optical cable length: 20 m
Electrical Controls
Power supply: 380–400 V ±10%, three-phase 50/60 Hz
Power adjustment: 10–100%, continuously adjustable
Control interfaces: RS232, AD analog, Ethernet
Electro-optical conversion efficiency: ≥40%

Compatible with Flat Fiber Laser Cutting Machines, Compact Sheet-and-Tube Cutting Machines, Robotic 3D Cutting Workstations

Model:  MFSC-3000W Welding

Rated Output Power: 3000 W
Center Wavelength: 1080 ± 10 nm
Power Stability: Short-term ±1%, Long-term ±2% (Chuangxin Laser)
Maximum Modulation Frequency: 20 kHz
Beam Quality (BPP): 1.1–1.5 mm·mrad (50 μm–QBH) Chuangxin Laser
Output Fiber Core Diameter: 50 μm (optional: 100/200/400 μm) Chuangxin Laser
Red Light Indicator: 200 μW
Output Connector: Standard QBH
Fiber Cable Length: 20 m
Minimum Fiber Bending Radius: 200 mm
Electrical Controls
Input Power Supply: 380–400 V ±10%, three-phase 50/60 Hz
Power Adjustment: 10–100%, continuously adjustable
Control Interfaces: RS232, AD analog, Ethernet
Electro-Optical Conversion Efficiency: ≥40%
Physical & Environmental
Cooling Method: Water-cooled

Compatible with Laser Welding Machine
