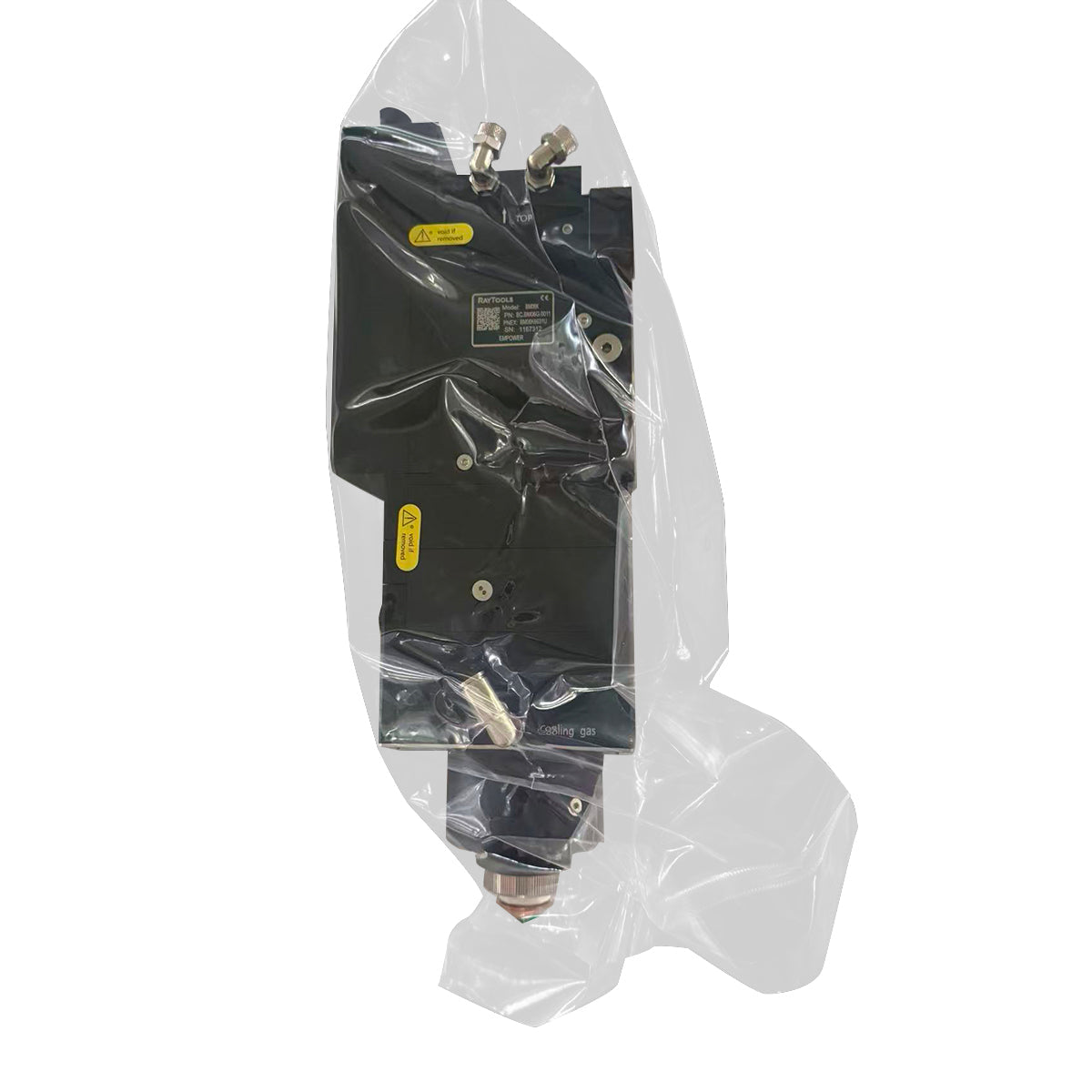

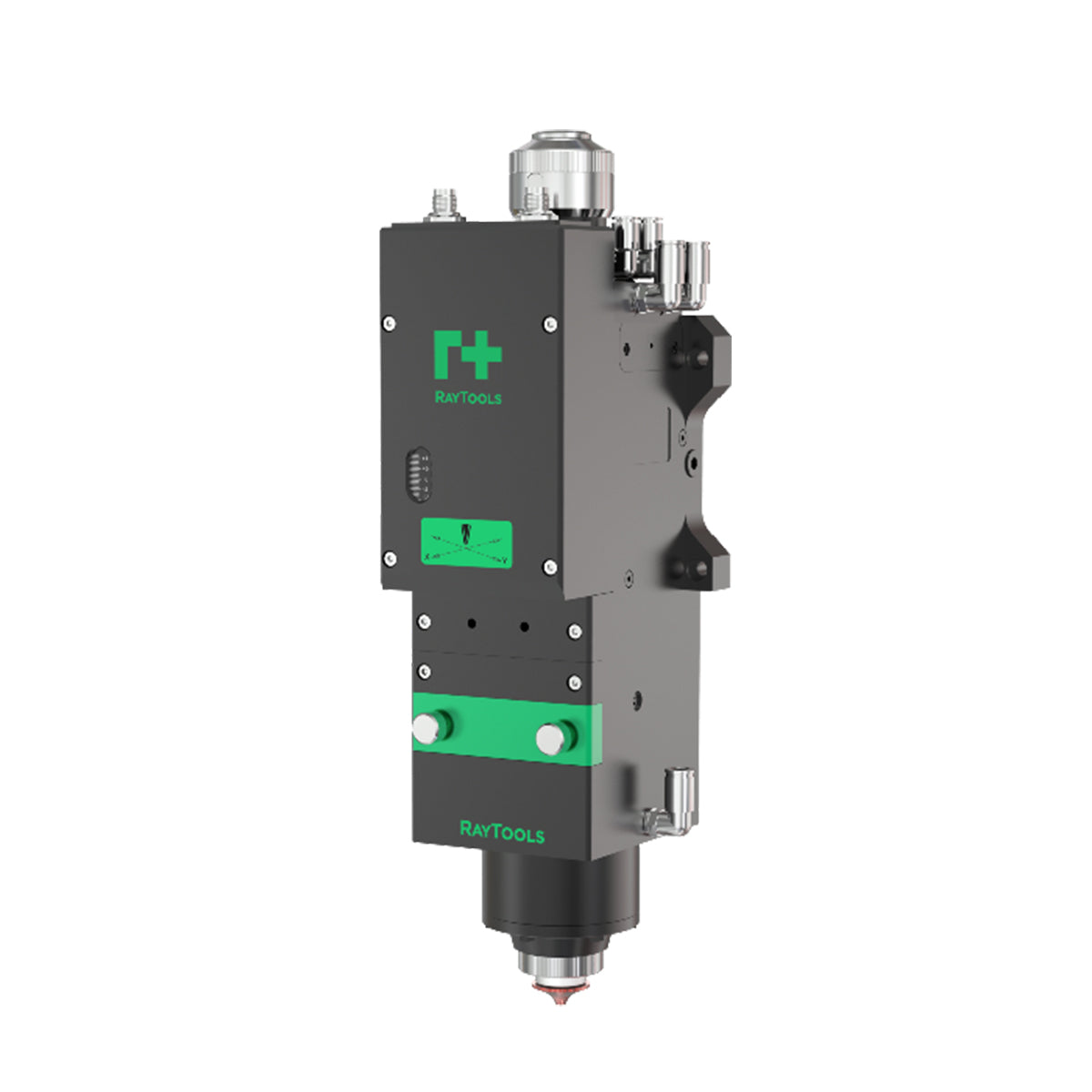

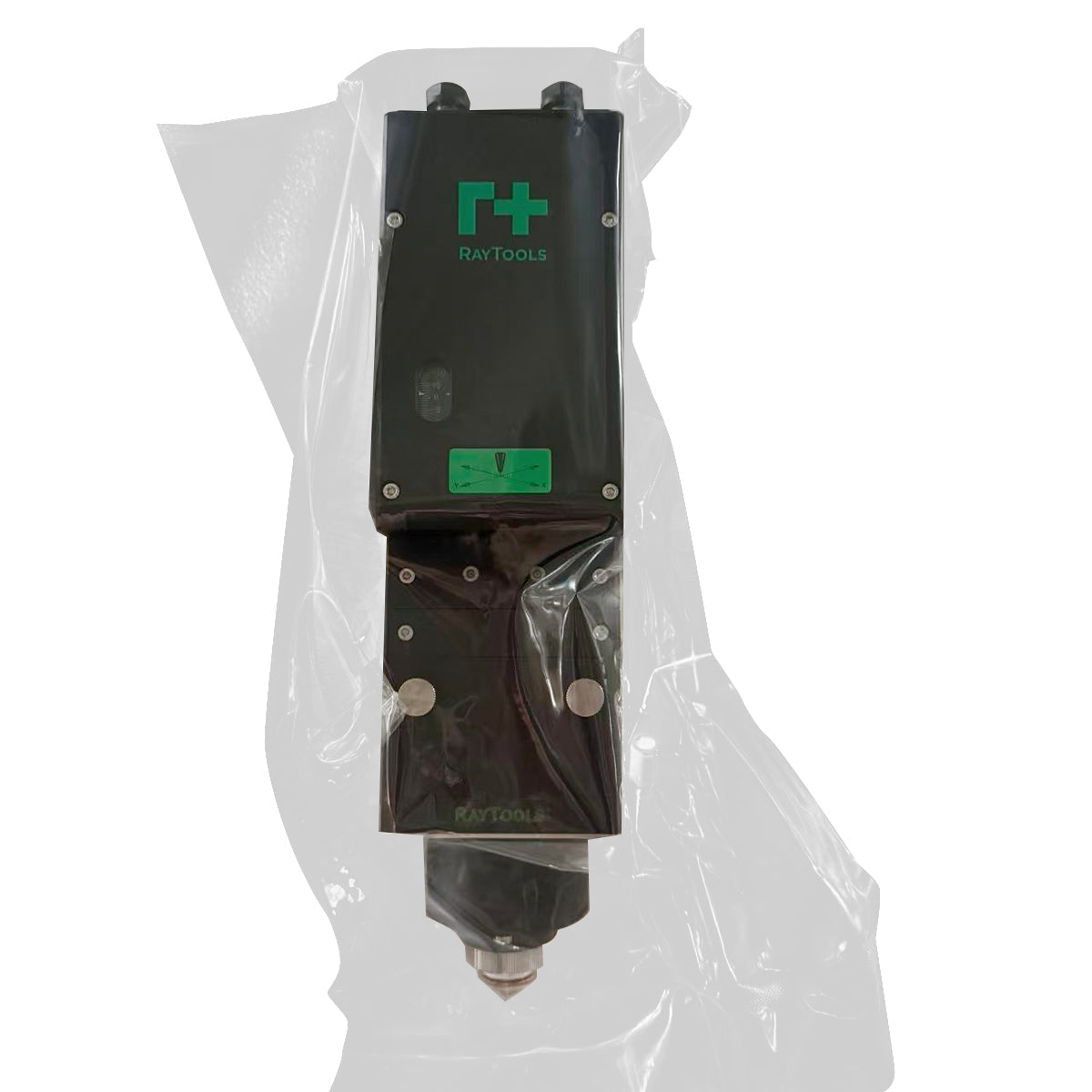

RayTools BM06K Auto Focus Laser Cutting Head

✅ Supports fiber lasers up to 6,000 W, suitable for cutting carbon steel, stainless steel, and thin/thick aluminum sheets
✅ Three-layer protective lens structure; the lower protective lens features a built-in temperature sensor with an over-temperature alarm to prevent lens burnout and significantly reduce maintenance costs
✅ Long-stroke electric auto-focus (±40 mm / ±72 mm); capacitive tracking sensors automatically monitor sheet height to prevent damage from head collisions
✅ Standard QBH fiber interface, compatible with all major 1080 nm fiber laser generators, including Raycus, Chuangxin, and IPG
✅ Drawer-style quick-release lens mount with dual-path independent water-cooling; perfectly paired with an I5-6500 industrial PC (8GB RAM + 120GB SSD + Windows 10), pre-installed with Baochu software for plug-and-play operation

Model: BM06K6631U 2.0 100:200 G5

Model: BM06K (RAYTOOLS )
Maximum Compatible Laser Power: 6000W (6kW)
Compatible Laser Wavelength: 1080nm
Fiber Interface: QBH
Optical Ratio: 100:200

Model: BM06K6631U 2.0 100:200 G5

Model: BM06K (RAYTOOLS )
Maximum Compatible Laser Power: 6000W (6kW)
Compatible Laser Wavelength: 1080nm
Fiber Interface: Standard G5
Optical Ratio: 100:200

Model: BM06K6621U（100:150）G5

Model: BM06K (RAYTOOLS)
Maximum Compatible Laser Power: 6000W (6kW)
Compatible Laser Wavelength: 1080nm
Fiber Interface: G5
Optical Ratio: 100:150

Compatible with:

Fiber Laser Flat-Bed Cutting Machine (Single-Platform Cutter for Thin and Medium-Thick Sheets)

Combined Sheet and Tube Fiber Laser Cutting Machine (Dual-Purpose Machine for Sheets, Round Tubes, and Square Tubes)
