SMC ITVX2030-333BL High Voltage Proportional Valve

✅ Factory-certified for nitrogen-based applications, specifically designed for continuous, stepless adjustment of high-pressure nitrogen assist gas pressure in fiber laser cutting
✅ Wide pressure adjustment range with rapid response, ensuring stable and controllable nitrogen pressure for various sheet metal cutting processes
✅ Built-in high-precision pressure sensor feedback minimizes pressure fluctuations, effectively stabilizing cut surface quality and reducing oxidation and burrs

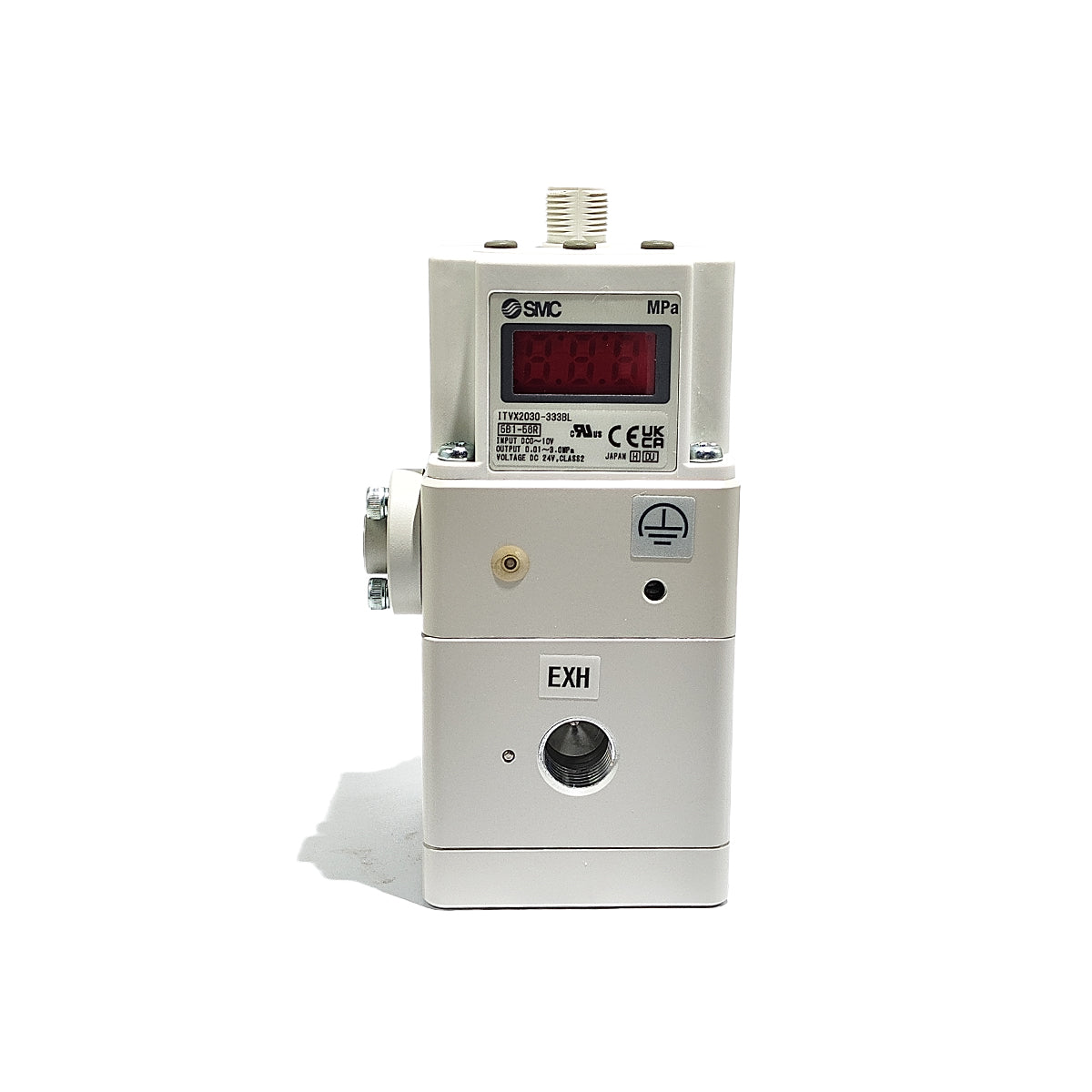

✅ Integrated digital display for real-time pressure monitoring facilitates on-site commissioning and inspections, allowing for quick verification of output pressure status

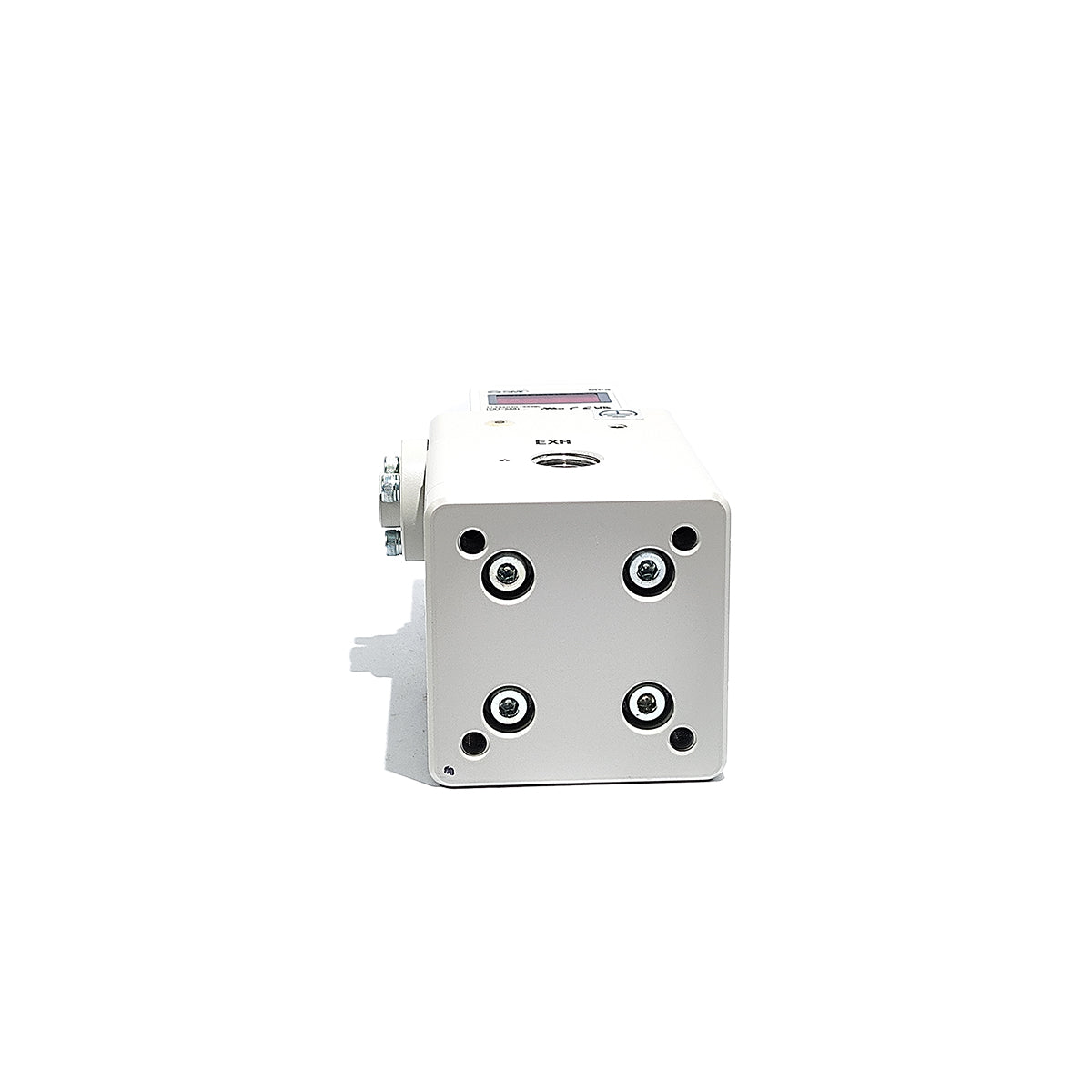

✅ Compact, lightweight valve body design saves space inside the electrical control cabinet; standardized wiring interfaces ensure convenient assembly and commissioning
✅ RoHS and CE certified with stable electrical performance, suitable for 24-hour uninterrupted mass production operation of laser equipment

Specifications：

Model: ITVX2030-333BL
Supply Voltage: DC 24 V ±10%, Rated Current ≤0.12 A, Power Consumption ≤3 W
Compatible Fluids: Nitrogen (N₂), Compressed Air, Argon (Ar)
Maximum Supply Pressure: 5.0 MPa
Adjustable Pressure Range: 0.01–3.0 MPa
Maximum Flow Rate: 3000 L/min (ANR) (under operating conditions of 5.0 MPa supply pressure and 3.0 MPa set pressure)
Input Control Signal: DC 0–10 V voltage signal
Monitoring Output Signal: DC 1–5 V pressure feedback signal

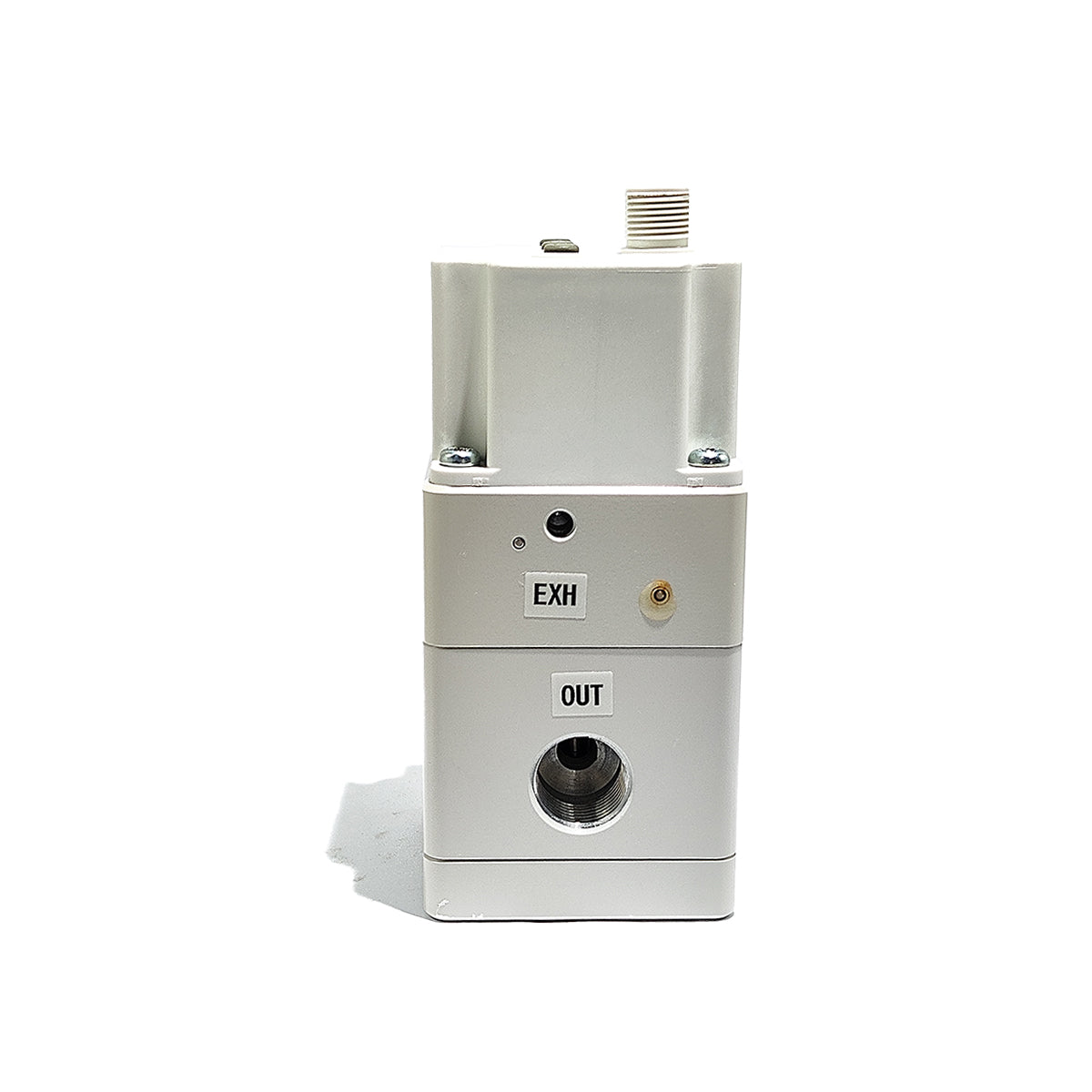

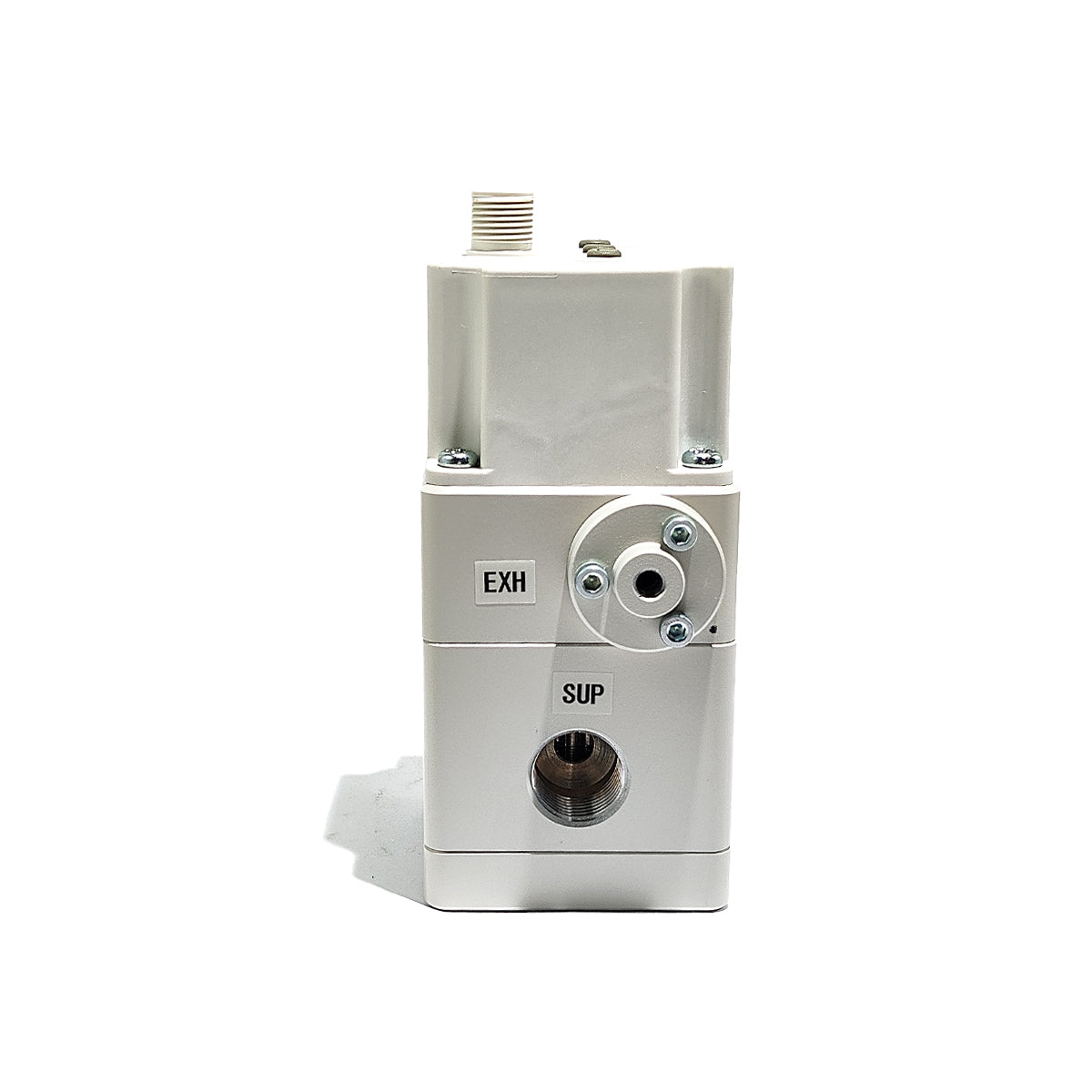

Pipe Connection Thread: Rc3/8
Linearity: ≤±1% F.S.
Hysteresis: ≤1% F.S.
Repeatability: ≤±1% F.S.
Equipped with a digital display showing pressure in MPa
Operating Environment: Temperature 0–45°C; dust-free, non-condensing, electrically controlled environment
Operating Restrictions: For air blowing applications only; not suitable for drive or sealing circuits
Media-contacting components use fluorinated grease, suitable for high-purity nitrogen applications
