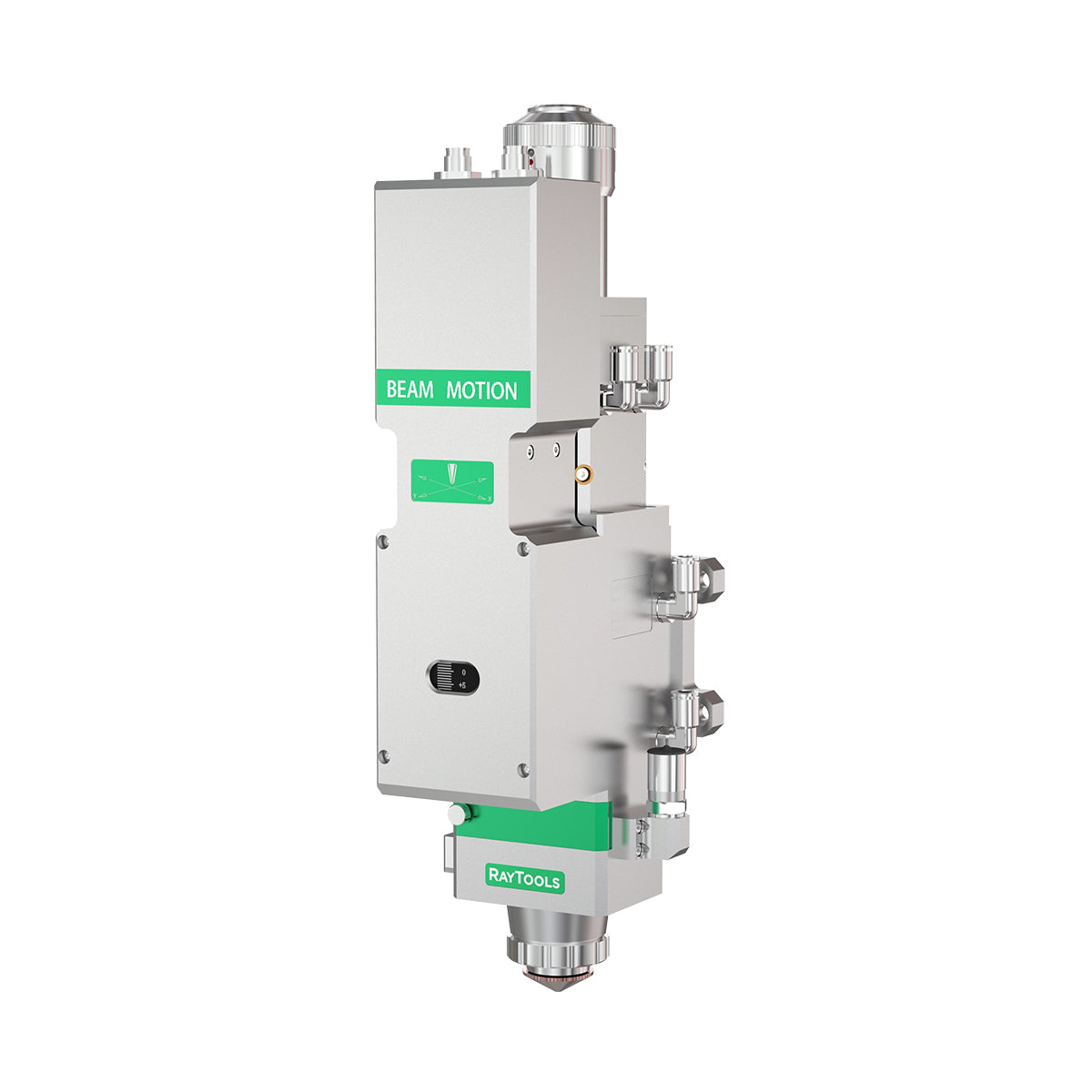

Raytools 1-3KW 3D Autofocus Fiber Laser Cutting Head

✅ Supports fiber lasers up to 3 kW, equipped with a 100 mm collimator and a 150 mm focusing lens, covering cutting applications from thin to medium-thick plates
✅ Electric automatic focusing travel: -12 to +10 mm; high-precision servo drive eliminates the need for manual lens assembly replacement when processing different sheet materials
✅ Quick-release drawer-style lower protective lens design; maintenance requires no disassembly of the entire machine, significantly reducing downtime for servicing
✅ Dual independent water-cooling circuits + dual air supply lines ensure stable, long-term processing and effectively protect lenses from burn damage

Model: BMH1100111 100:150 QBH

Compatible Laser Power    1000W–3000W fiber laser
Laser Wavelength    1080 nm
Fiber Interface    Standard QBH, optional QD
Optical Assembly    Collimation 100 mm; Focusing F150
Automatic Focus Adjustment Range    -12 mm to +10 mm, Accuracy 0.05 mm
Cooling Method    Dual-path circulating water cooling for fiber and collimation
Gas Line Configuration    Φ10 cutting gas, Φ8 nozzle cooling gas

Model: BM111(100:125)

Compatible Laser Power    1000W–3000W fiber laser
Laser Wavelength    1080 nm
Fiber Interface    Standard QBH, optional QD
Optical Assembly    Collimation 100 mm; Focusing F125
Automatic Focusing Range    -12 mm to +10 mm, Accuracy 0.05 mm
Cooling Method    Dual-path water cooling for fiber and collimator
Gas Configuration    Φ10 cutting gas, Φ8 nozzle cooling gas

Model: BM111 100:150 QBH

Compatible Laser Power    1000W–3000W fiber laser
Laser Wavelength    1080 nm
Fiber Interface    Standard QBH, optional QD
Optical Assembly    Collimation 100 mm; Focusing F150
Automatic Focus Adjustment Range    -12 mm to +10 mm, Accuracy 0.05 mm
Cooling Method    Dual-path circulating water cooling for fiber and collimation
Gas Line Configuration    Φ10 cutting gas, Φ8 nozzle cooling gas

Compatible with:

Single-platform fiber laser cutting machines for thin sheets up to 3 kW
Compact fiber laser machines for both sheet metal and tubing
Replacement and upgrade of cutting heads for older 1000 W, 1500 W, and 3000 W laser machines
