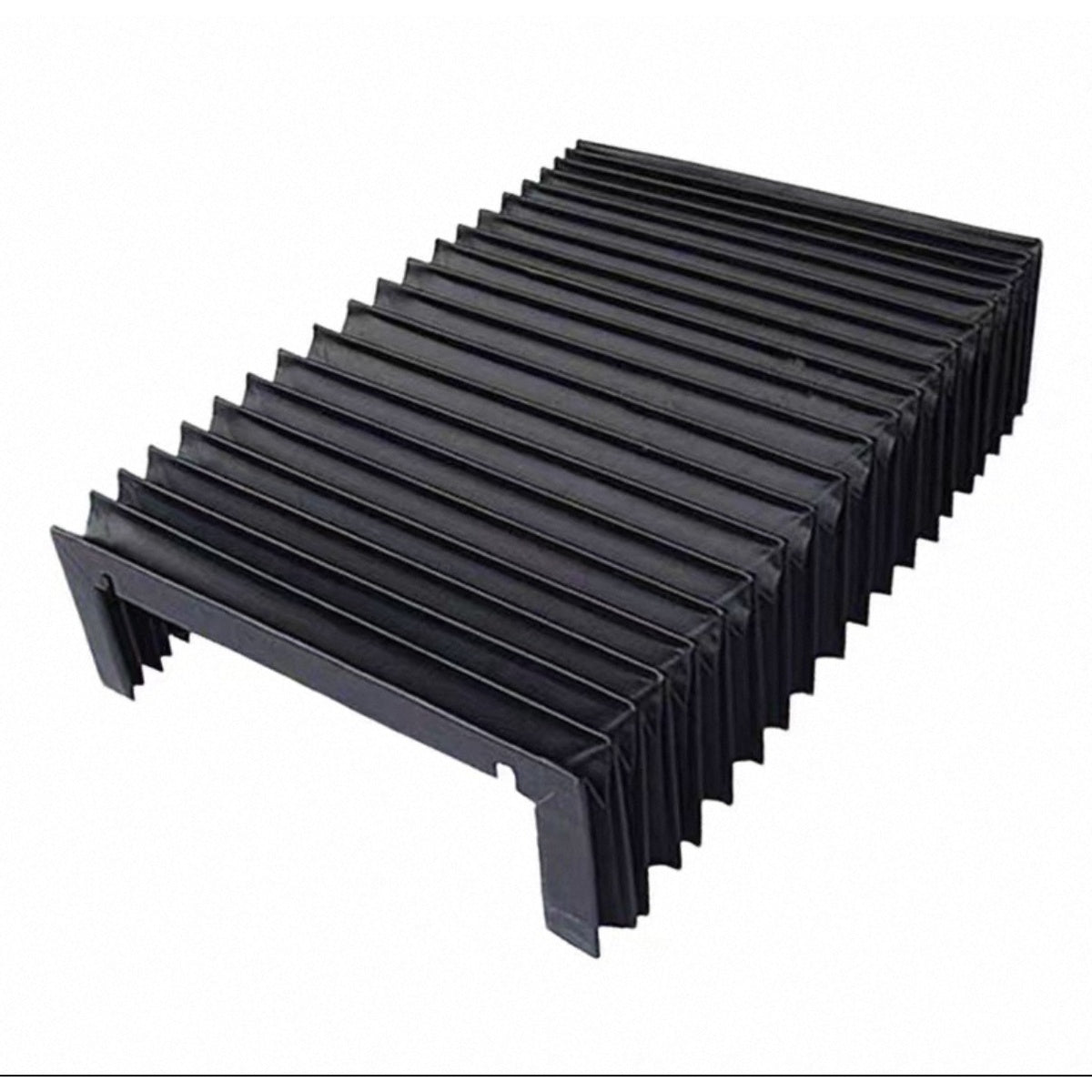

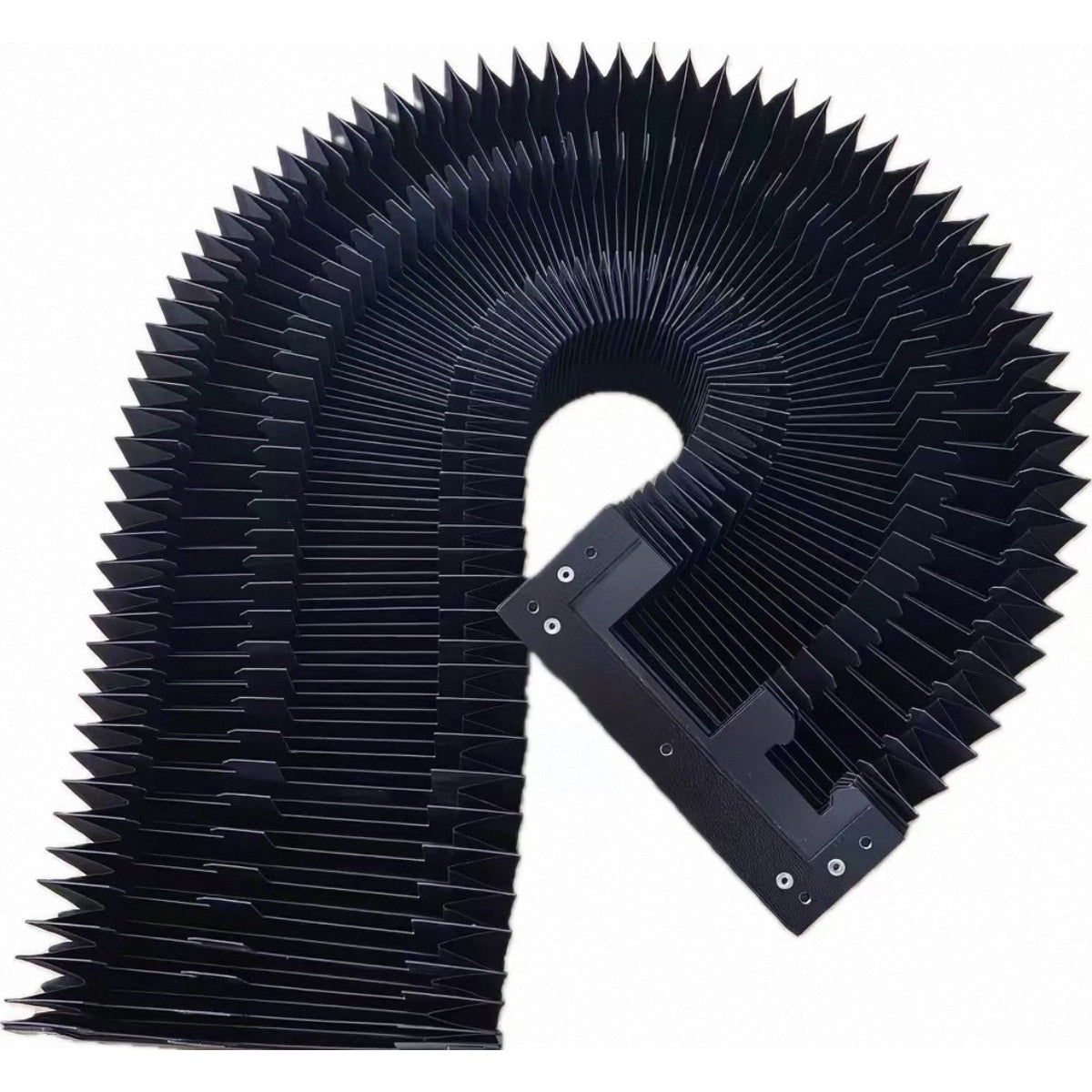

Dust Cover Armor Dust Cover for Sengfeng Laser Cutting Machine

✅ Flame-retardant and fire-resistant; blocks high-temperature laser slag to eliminate the risk of cover burnout
✅ Double-layer steel plate + fully corrugated PVC frame; withstands 100,000 folds without deformation
✅ Sealed to keep out dust and oil; protects guide rail precision and significantly reduces maintenance costs
✅ Original factory-molded design compatible with Senfeng laser machines; precise hole alignment for plug-and-play installation
✅ Optional silent rollers ensure smooth, noise-free, and jam-free high-speed extension and retraction
✅ Full range of custom lengths available; one-stop solution for complete guide rail protection

Model: LM3015G2.01-7T0

Extension Stroke
Total extension length: 3700 mm
Compression length: 250 mm

Compatible with 3015G2/3015M2

Model: LM3015G2.01-7

Extension Stroke
Compressed Length: 250 mm;
Total Extended Length: 3,700 mm

Compatible with 3015G2/3015M2

Model: LM3015G.02-2

Extension Stroke
Compressed Length: 180 mm;
Total Extended Length: 1,900 mm

Compatible with 3015G2/3015M2

Model: LM3015KHC.02-4T1

Extension Stroke
Compressed Length: 129 mm;
Total Extended Length: 1,700 mm

Compatible with 3015N

Model: SF3015N.01-2T0

Extension Stroke
Maximum length when compressed: ≤290 mm
Minimum length when extended: ≥3,500 mm

Compatible with 3015N

Model: SF3015N.01-3T0

Extension Stroke
Maximum length when compressed: ≤290 mm
Minimum length when extended: ≥3,500 mm

Compatible with 3015N

Model: SF3015N.01-13

Extension Stroke
Maximum length when compressed: ≤290 mm
Minimum length when extended: ≥3,500 mm

Compatible with 3015N

Model: SF3015N.01-14

Extension Stroke
Maximum length when compressed: ≤290 mm
Minimum length when extended: ≥3,500 mm

Compatible with 3015N

Model: SF3015N.01-2T1

Extension Stroke
Maximum length when compressed: ≤290 mm
Minimum length when extended: ≥3,500 mm

Compatible with 3015N

Model: SF3015N.01-3T1

Extension Stroke
Maximum length when compressed: ≤290 mm
Minimum length when extended: ≥3,500 mm

Compatible with 3015N

Model: SF3015N.01-13T1

Extension Stroke
Maximum length when compressed: ≤290 mm
Minimum length when extended: ≥3,500 mm

Compatible with 3015N

Model: SF3015N.01-14T1

Extension Stroke
Maximum length when compressed: ≤290 mm
Minimum length when extended: ≥3,500 mm

Compatible with 3015N

Model: LM3015H4.02-4B

Extension Stroke
Total extension length: 1785 mm
Maximum compression length: 125 mm

Compatible with 3015H4

Model: LM3015H4.01-2B

Extension Stroke
Total Extension Length: 3650 mm
Compression Limit: ≤310 mm

Compatible with 3015H4

Model: LM3015H4.01-26B

Extension Stroke
Total Extension Length: 3650 mm
Compression Limit: ≤310 mm

Compatible with 3015H4

Model: LM3015H4.01-27B

Extension Stroke
Total Extension Length: 3650 mm
Compression Limit: ≤310 mm

Compatible with 3015H4

Model: LM3015H4.01-28B

Extension Stroke
Total Extension Length: 3650 mm
Compression Limit: ≤310 mm

Compatible with 3015H4

Model: LIII3015HC.02-13B

Extension Stroke
Total length when extended: 1700 mm
Maximum length when compressed: 129 mm

Compatible with 3015HC

Model: LIII3015HC.01-2C

Extension Stroke
Total Extension Length: 3750 mm
Minimum Compression Length: ≤350 mm

Compatible with 3015HC

Model: LIII3015HC.01-2C0

Extension Stroke
Total Extension Length: 3750 mm
Minimum Compression Length: ≤350 mm

Compatible with 3015HC

Model: LM1530G.02-3A

Extension Stroke
Total Extended Length: 3350 mm
Compressed Length: 220 mm

Compatible with 1530G

Model: LM1530G.01-2

Extension Stroke
Total Extended Length: 1600 mm
Compressed Length: 80 mm

Compatible with 1530G
