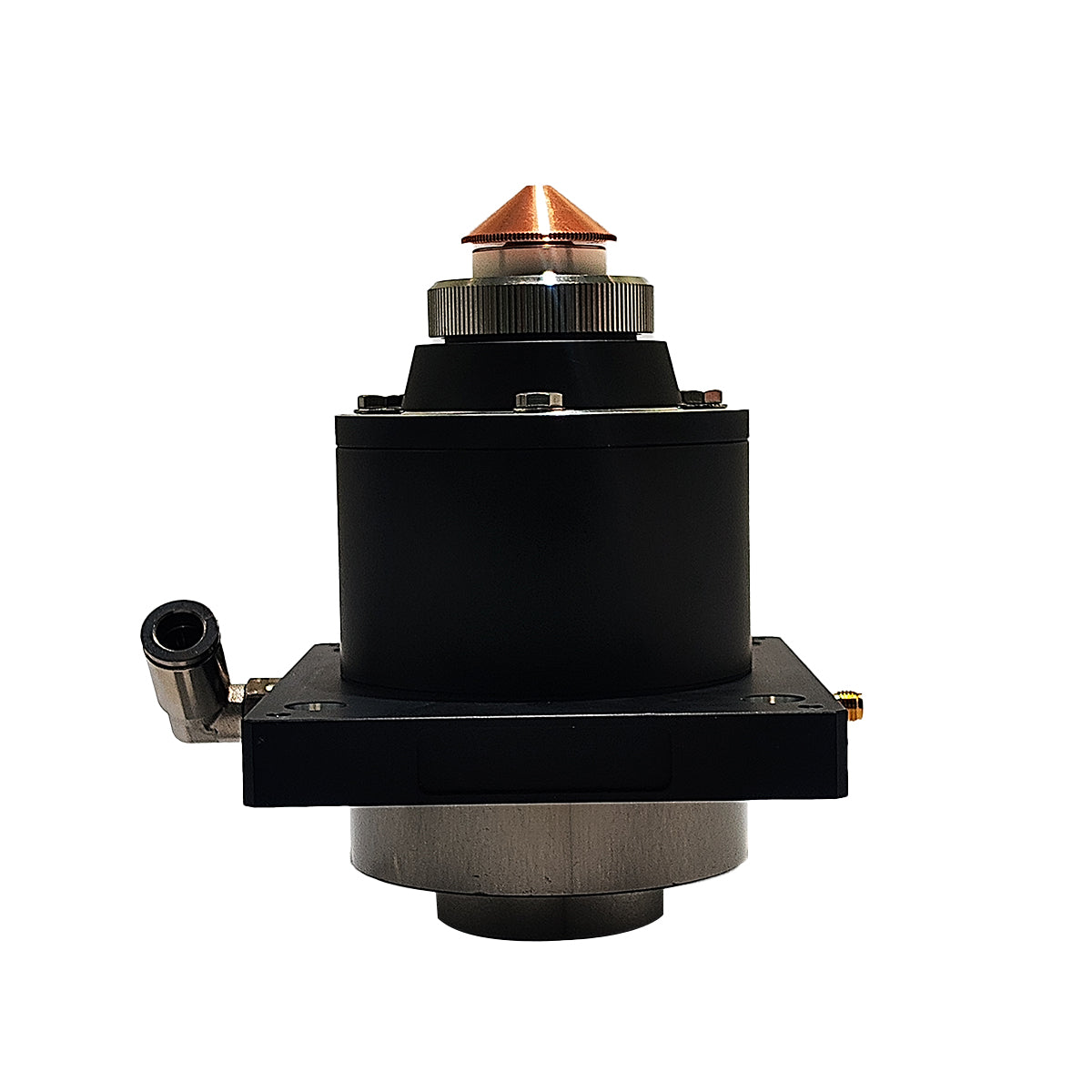

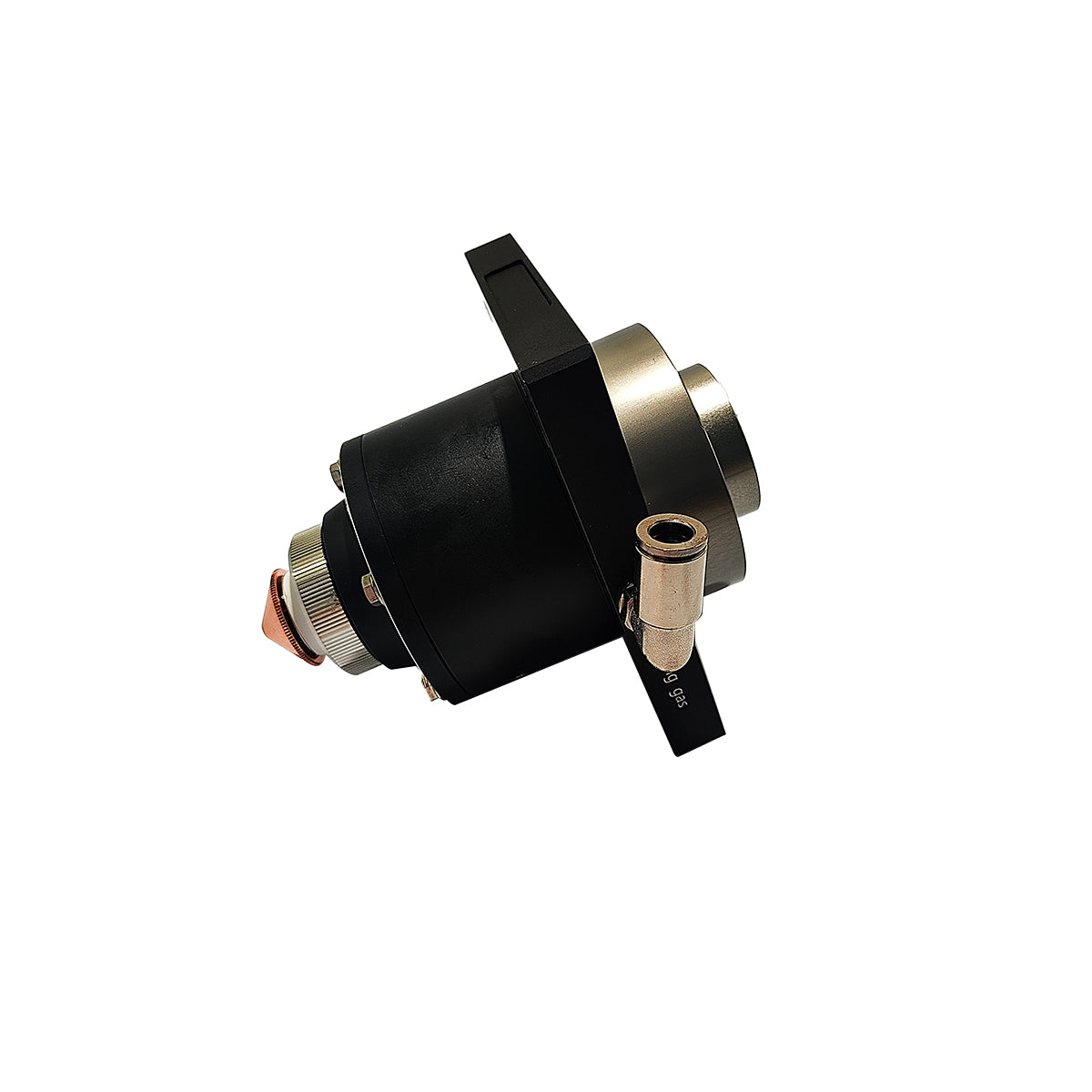

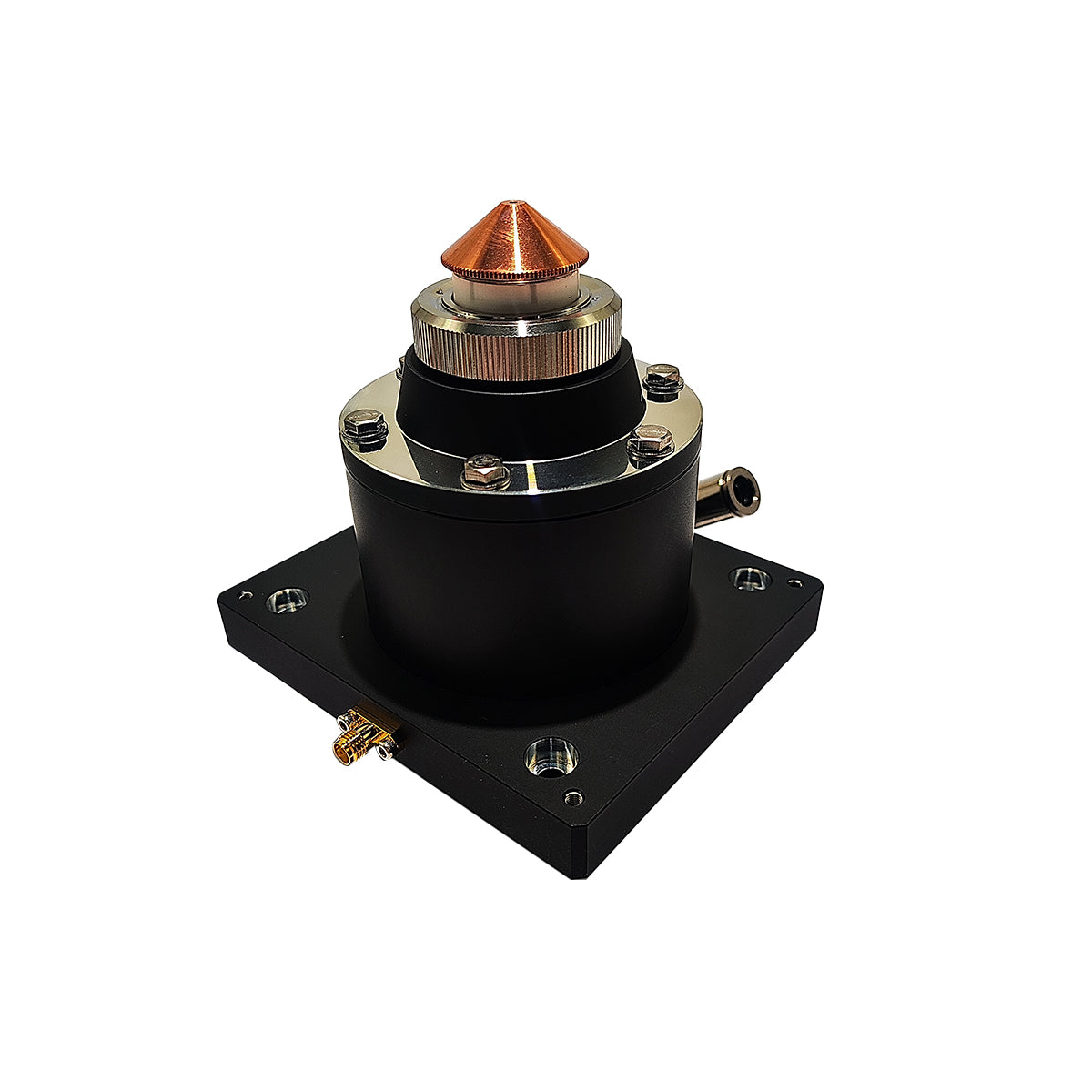

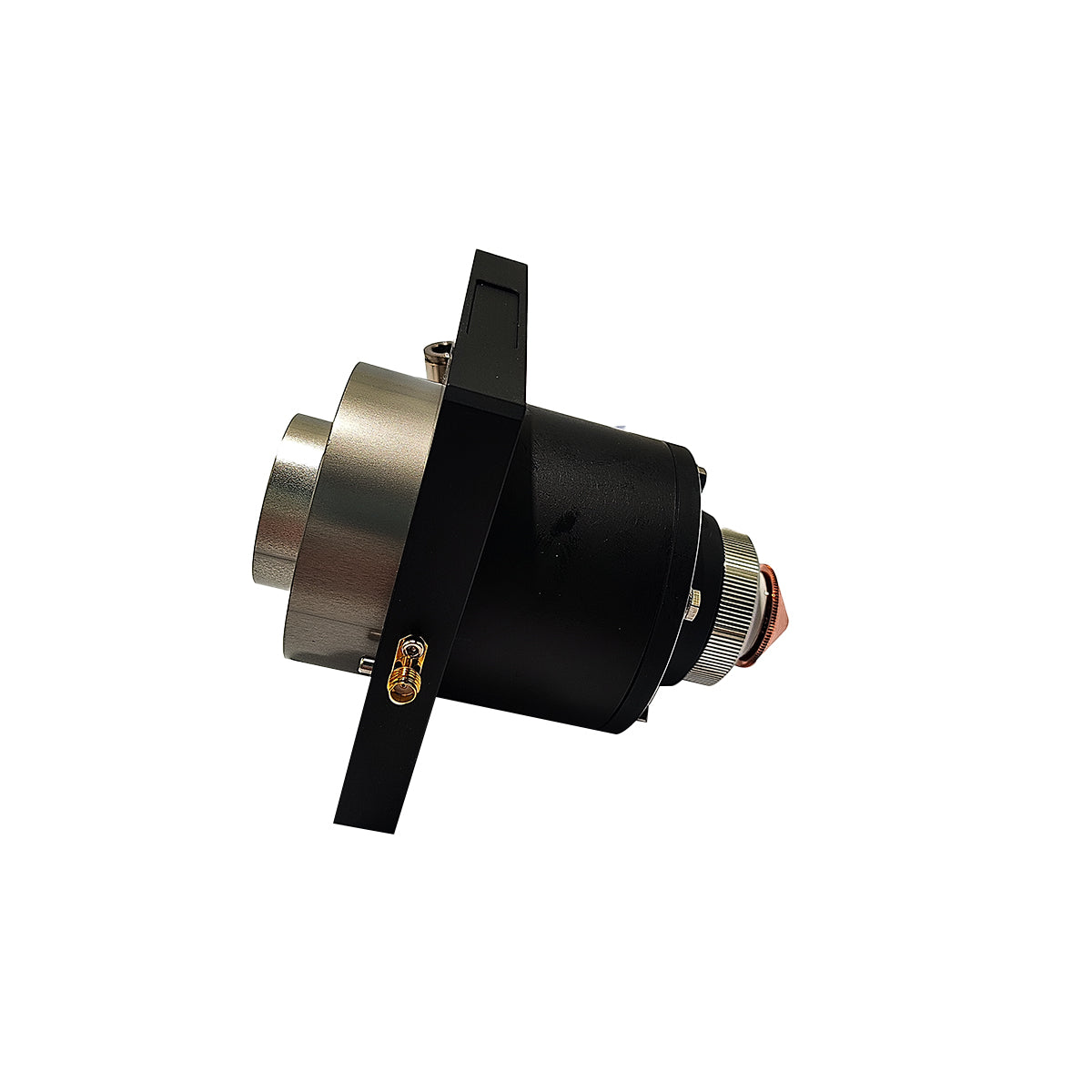

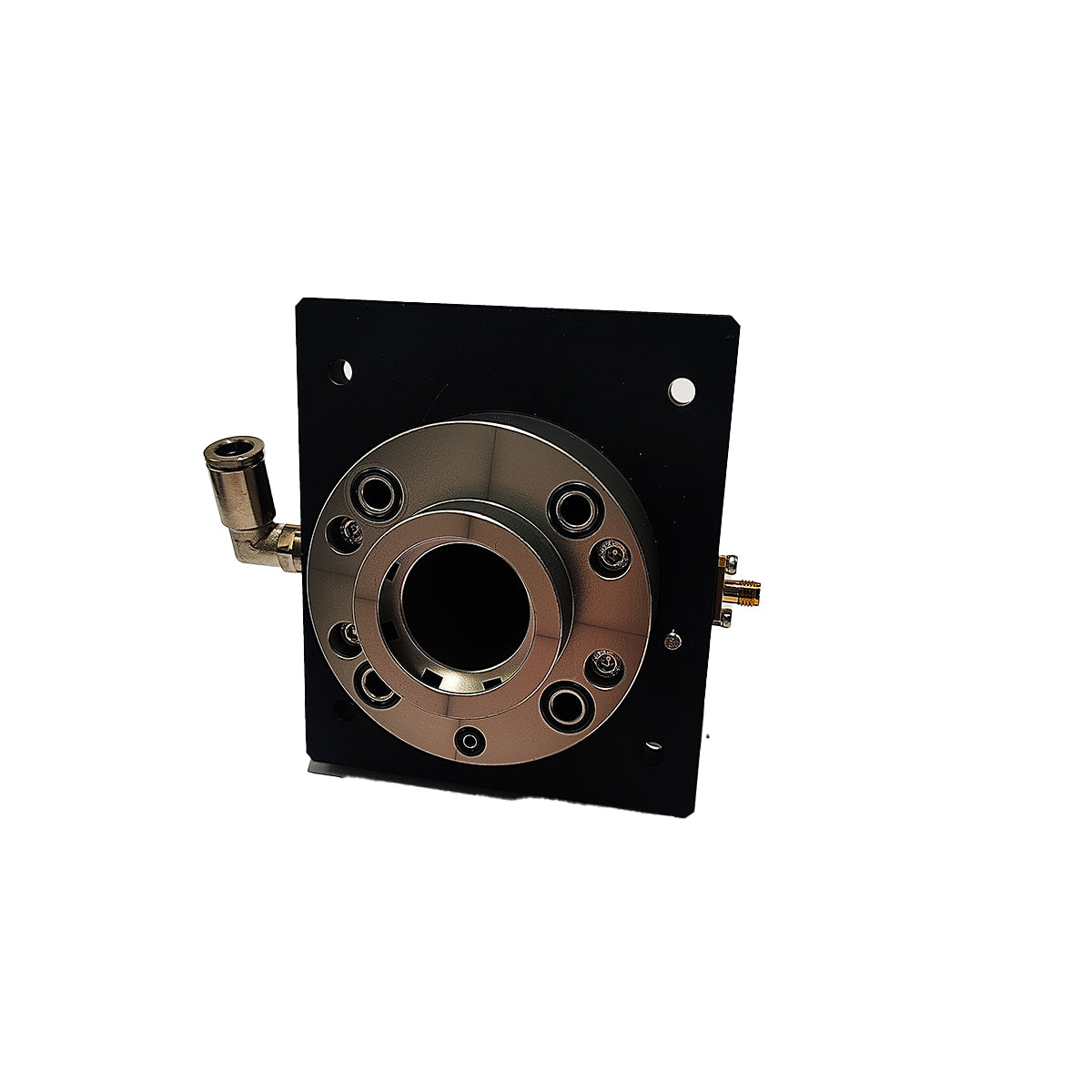

RayTools Original TRA BM06K 120BT1100B Laser Nozzle Assembly/Connector for Fiber Laser Cutting Heads

✅ Raytools Genuine Original 120BT1100B, F200 Focusing-Specific TRA Assembly, perfectly compatible with BM06K/BS06K cutting heads, plug-and-play, no modification or calibration required.
✅ High-precision capacitive sensing assembly with original factory assembly tolerances ensures sensitive, stable, and responsive height tracking; eliminates common counterfeit issues such as tracking jumps, head collisions, and perforation alarms, protecting the expensive cutting head
✅ Original factory airtight sealing structure prevents high-pressure cutting gas leaks, ensuring stable high-pressure nitrogen cutting pressure for thick plates and consistent cut surface quality
✅ Special alloy housing resistant to spatter and high temperatures; withstands high-temperature ablation and prevents slag spatter adhesion, ensuring a longer service life during high-power, continuous machining
✅ Factory-spec coaxiality assembly ensures precise concentricity after nozzle installation, preventing airflow distortion, reducing nozzle wear, and minimizing slag buildup

Specification:

120BT1100B (Black TRA Assembly)
Compatible with Raytools  BM06K0631U cutting head
Features: Capacitive height sensing, nozzle mounting base, integrated ceramic ring, lower positioning under the protective lens
Compatible nozzle types: Single-layer / double-layer / Boost nozzles, M14 thread, standard nozzles with an outer diameter of D28

Compatible with Raytools BM06K (2D) 200 Focal Length Cutting Head
