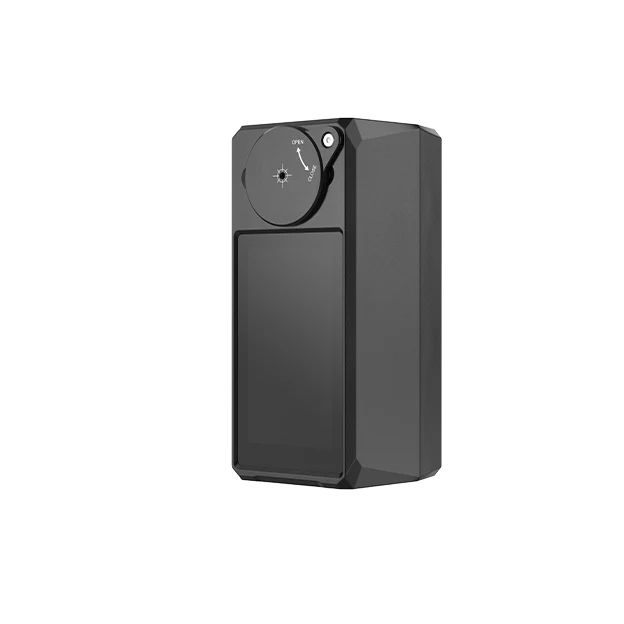

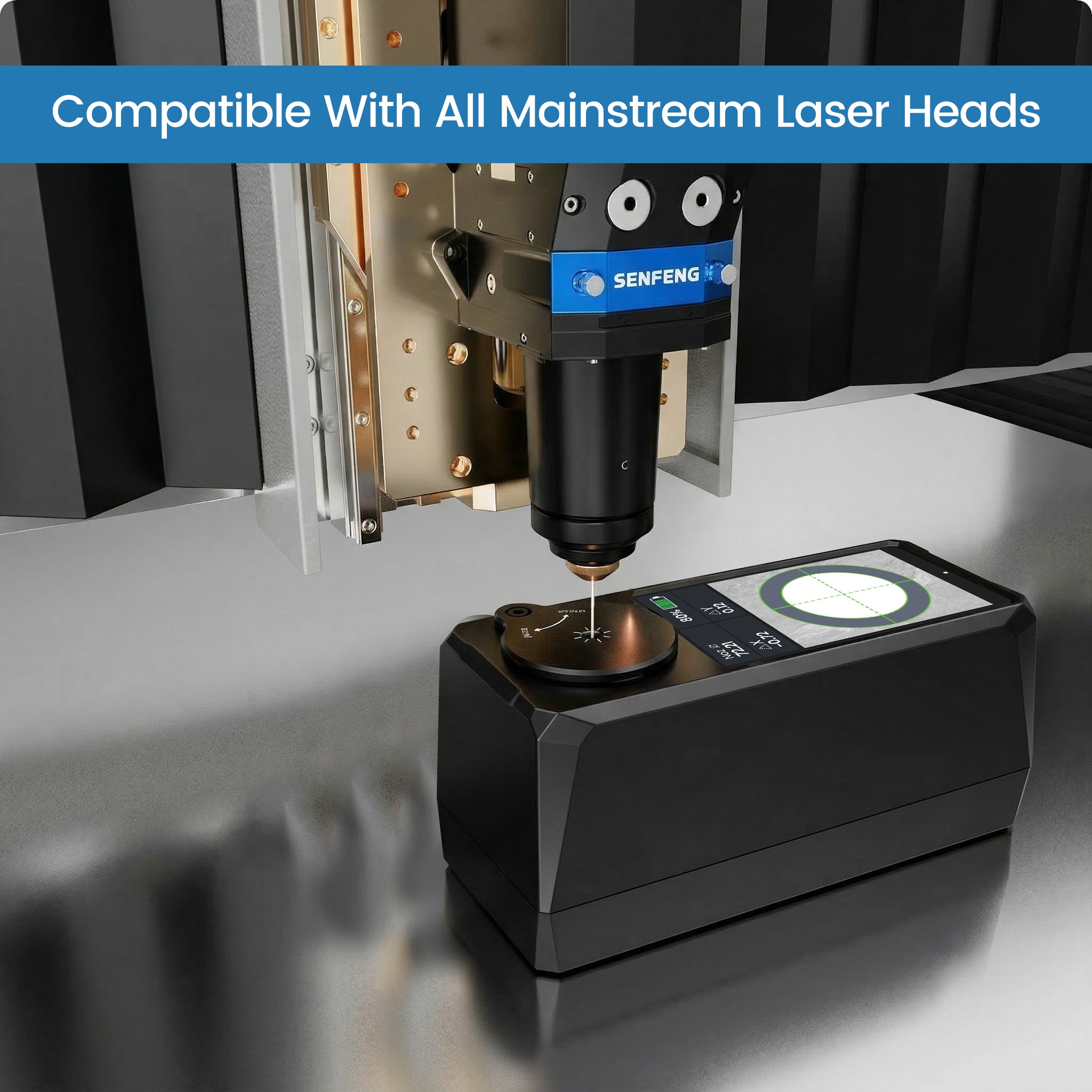

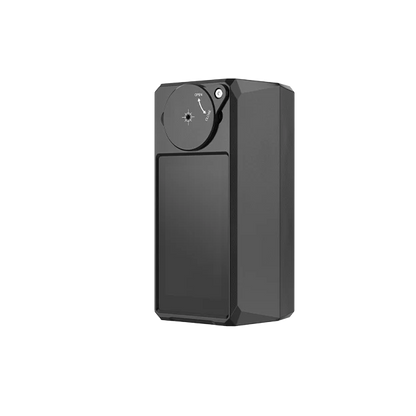

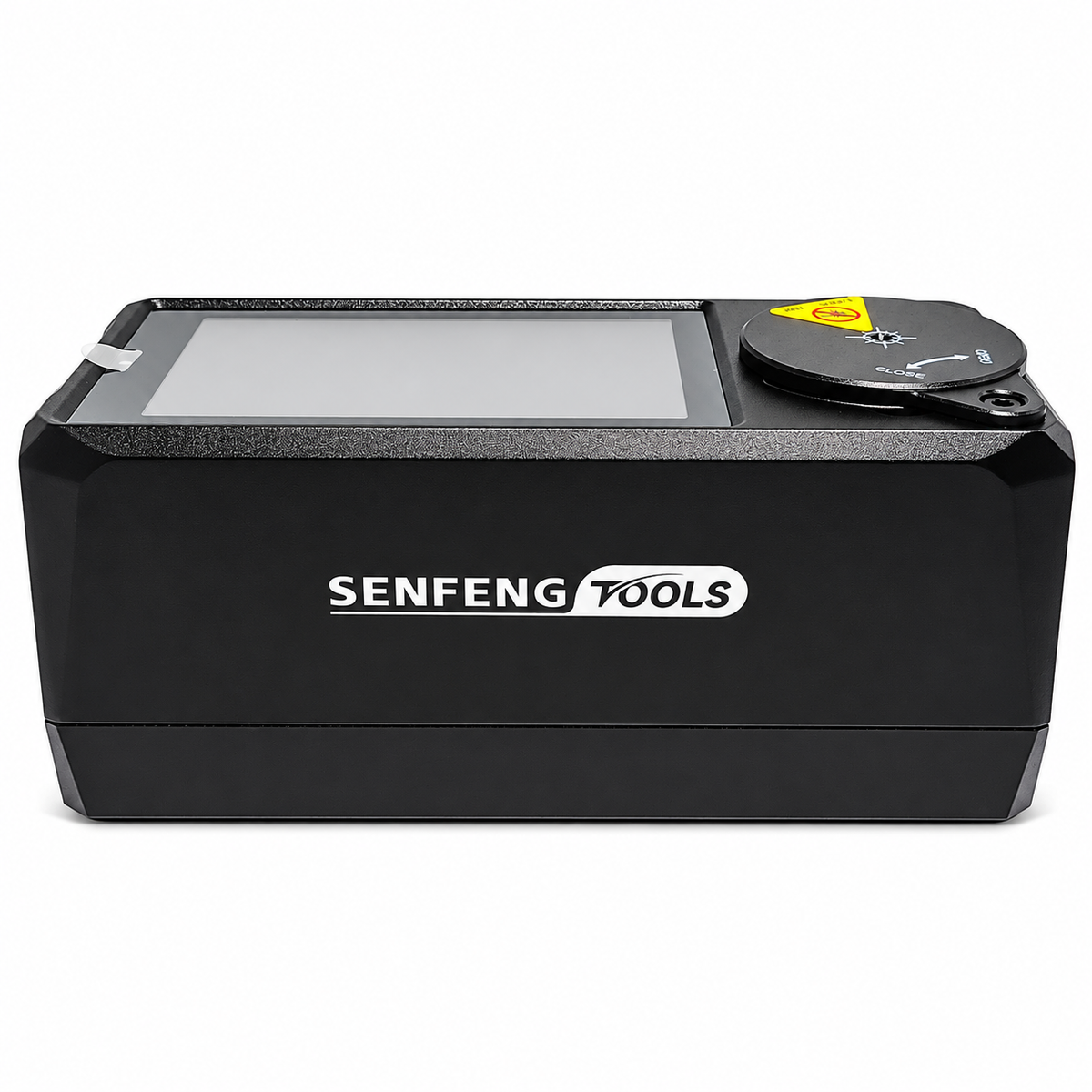

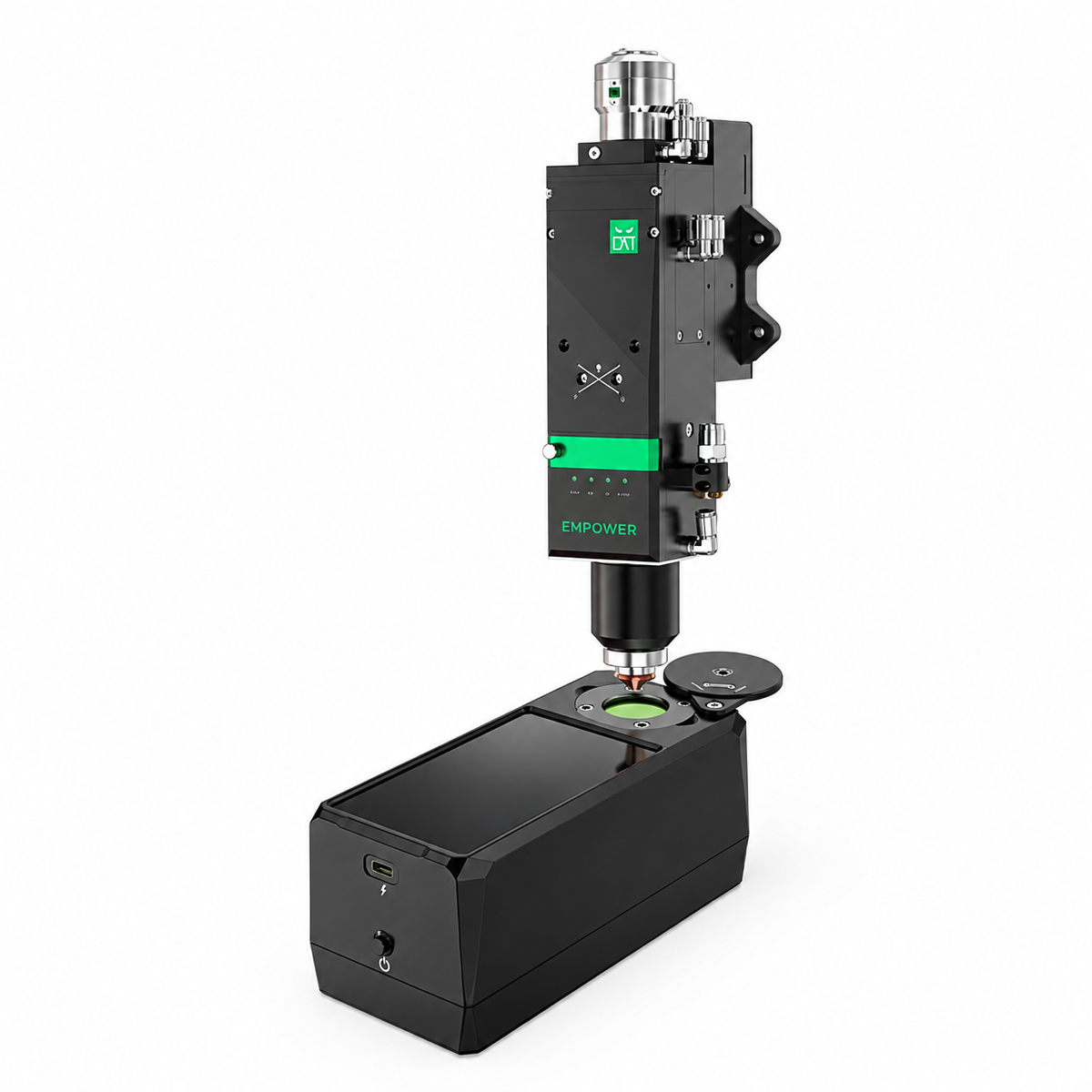

SoloEye S1 Laser Beam Alignment Tool — Nozzle Centring Device for Fibre Laser Cutting Heads
SoloEye S1 Laser Beam Alignment Tool — Nozzle Centring Device for Fibre Laser Cutting Heads
Features:

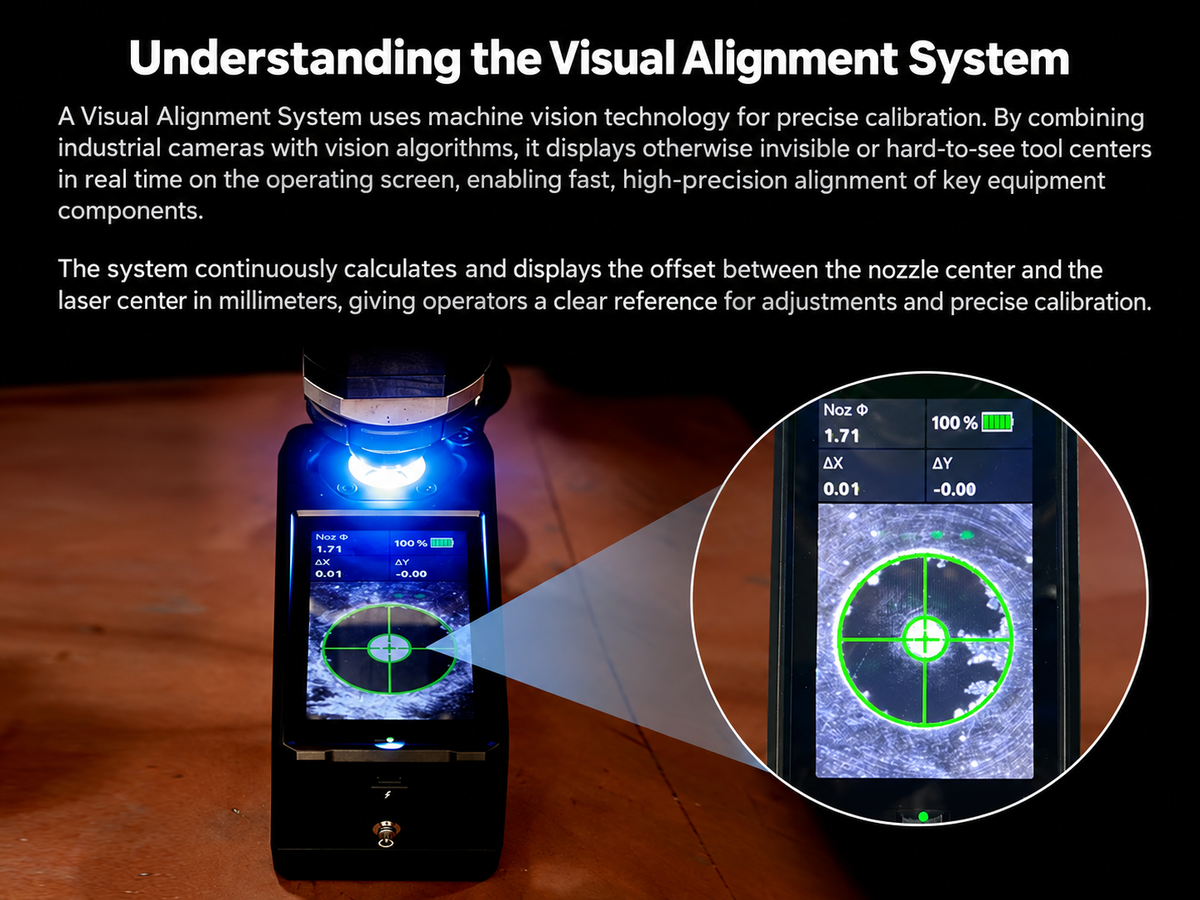

• Stable All-in-One Design — Built-in design eliminates signal lag and connection drops for stable, reliable tracking performance.

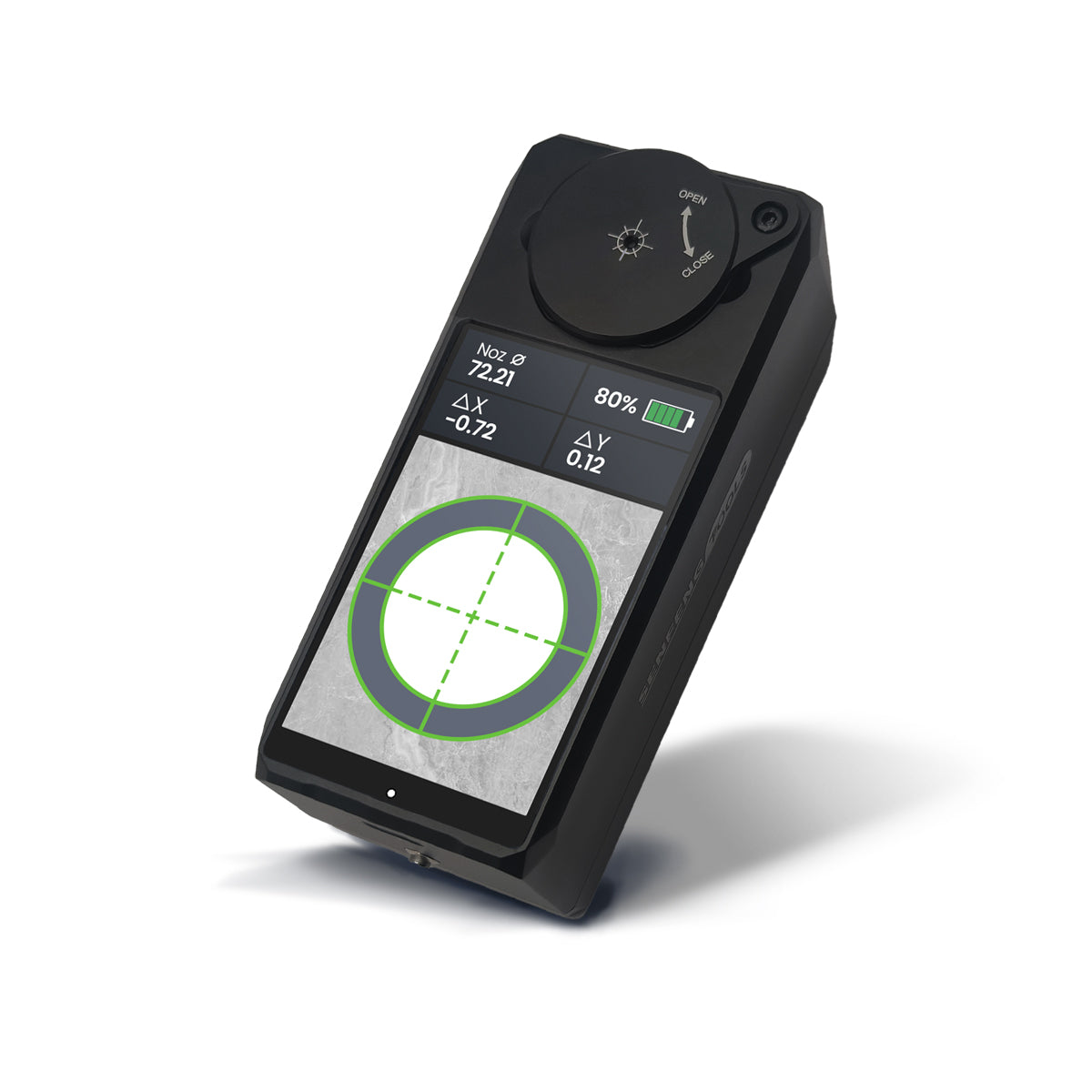

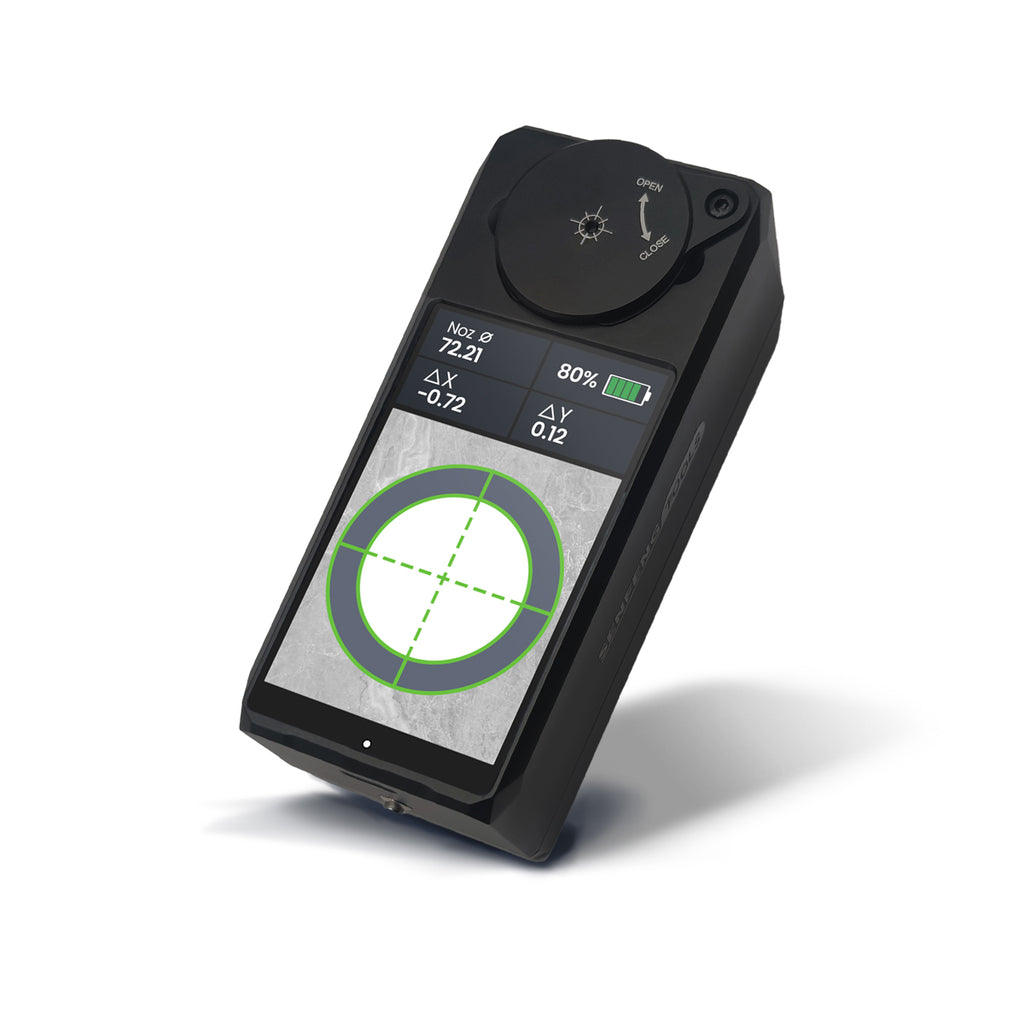

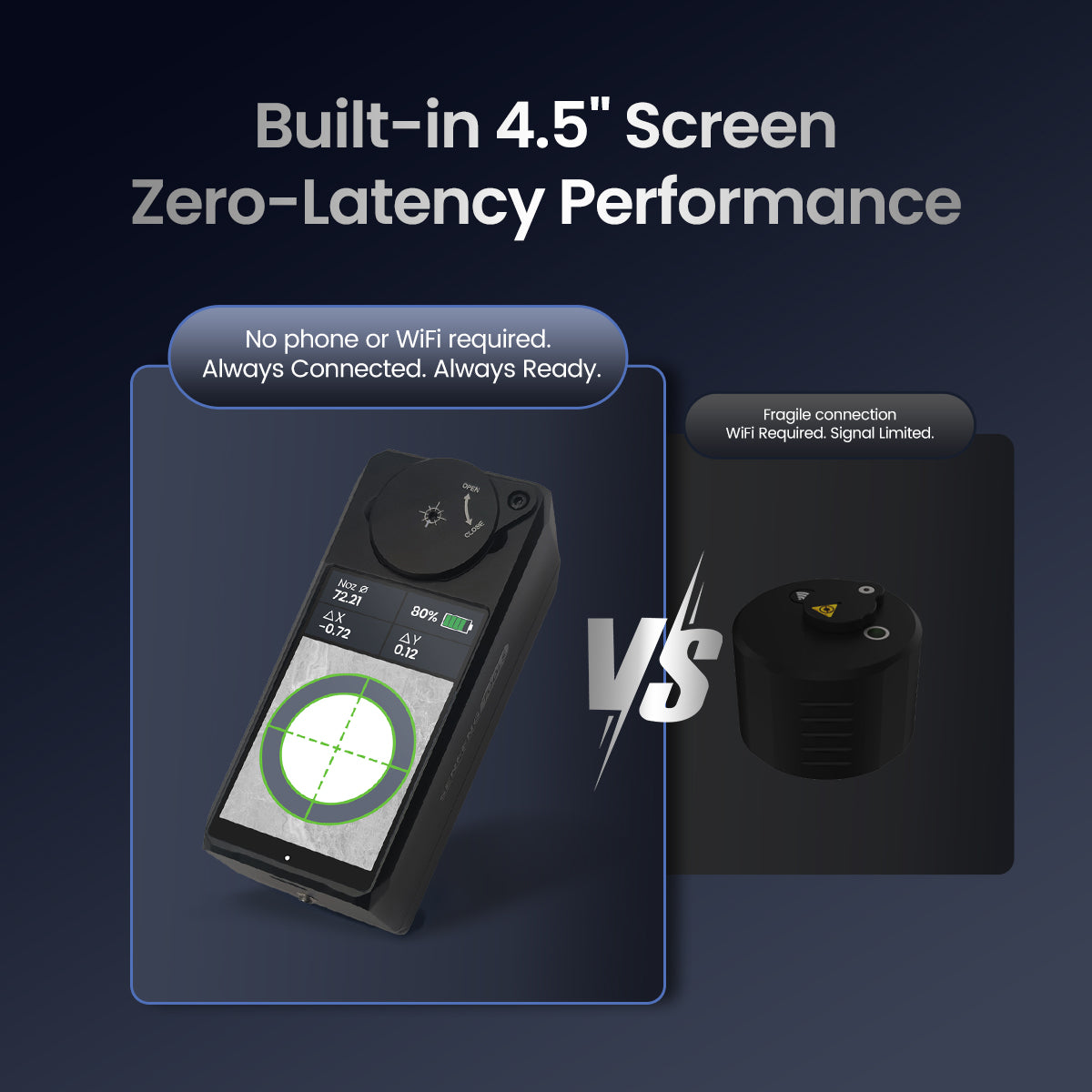

• Simple Plug-and-Play Operation — The integrated 4.5" HD screen provides an intuitive interface with no apps or complicated setup required.

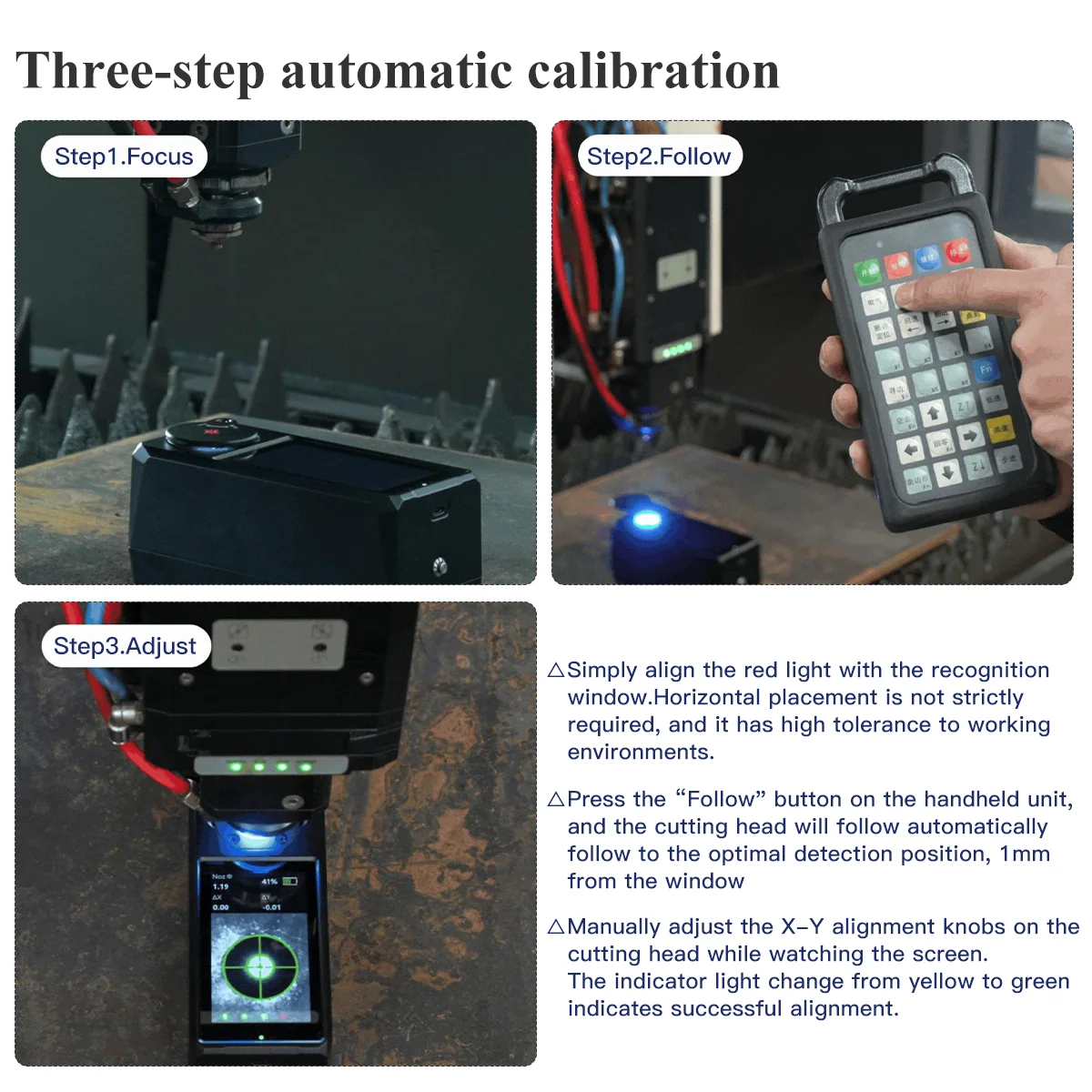

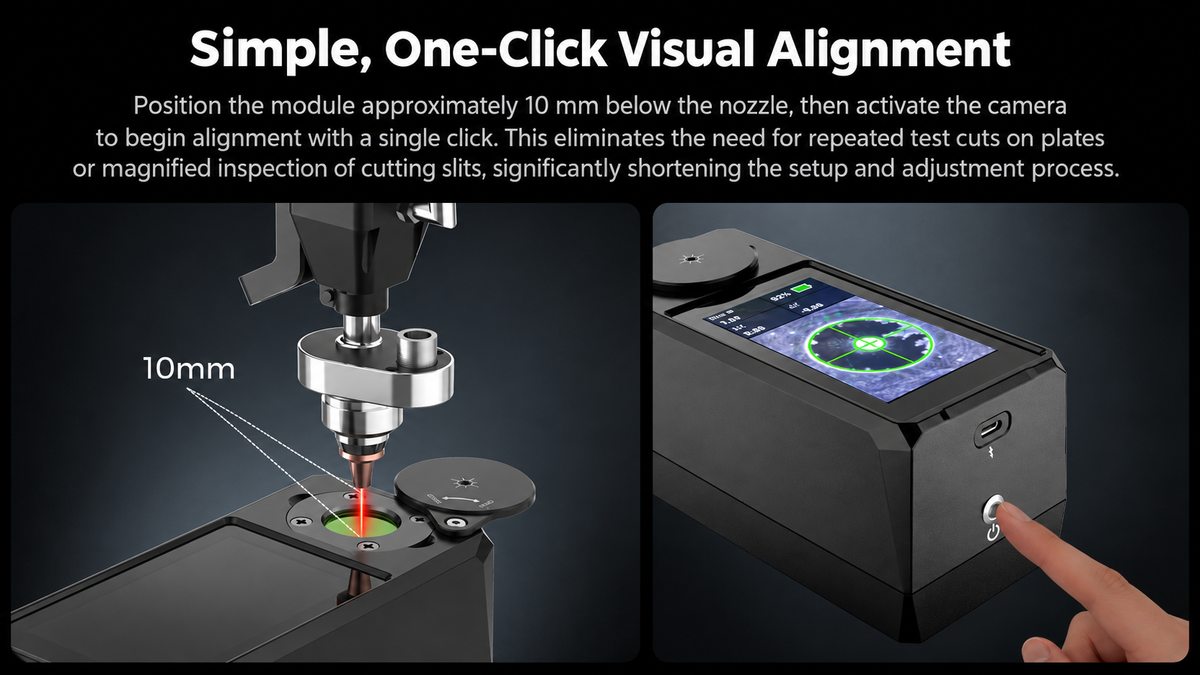

• Smart One-Click Auto Tracking — Automatically recognizes and tracks the workpiece with one click—no manual focusing or operator intervention required.

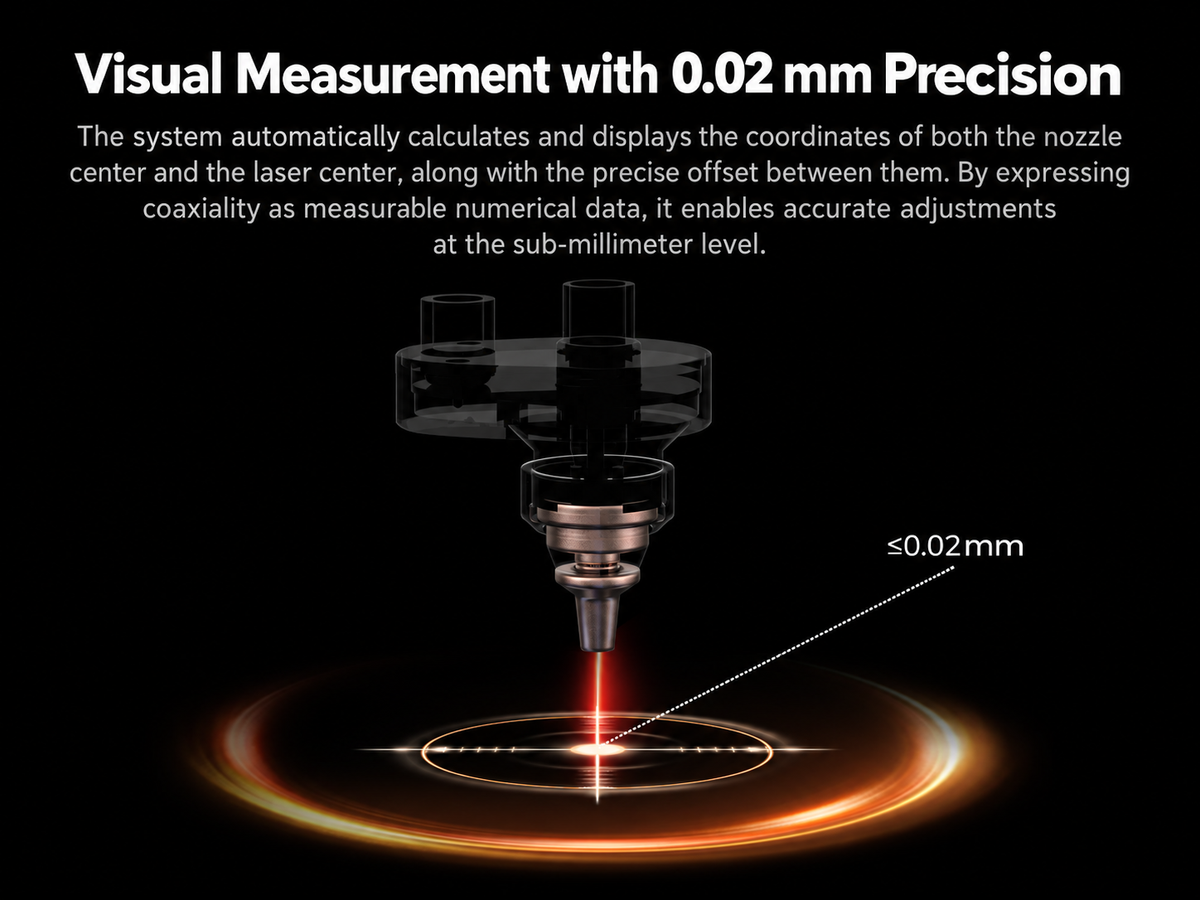

• High-Precision Recognition — Delivers ≤0.02 mm repeatability and ≤0.05 mm absolute accuracy, ensuring consistent alignment even when processing thick plates.
• Fast Alignment, Built for the Shop Floor — Complete alignment in under 1 minute, helping reduce setup time and maximize equipment uptime. With an IP64-rated enclosure and 0°C–60°C operating range, it's built for demanding workshop environments.

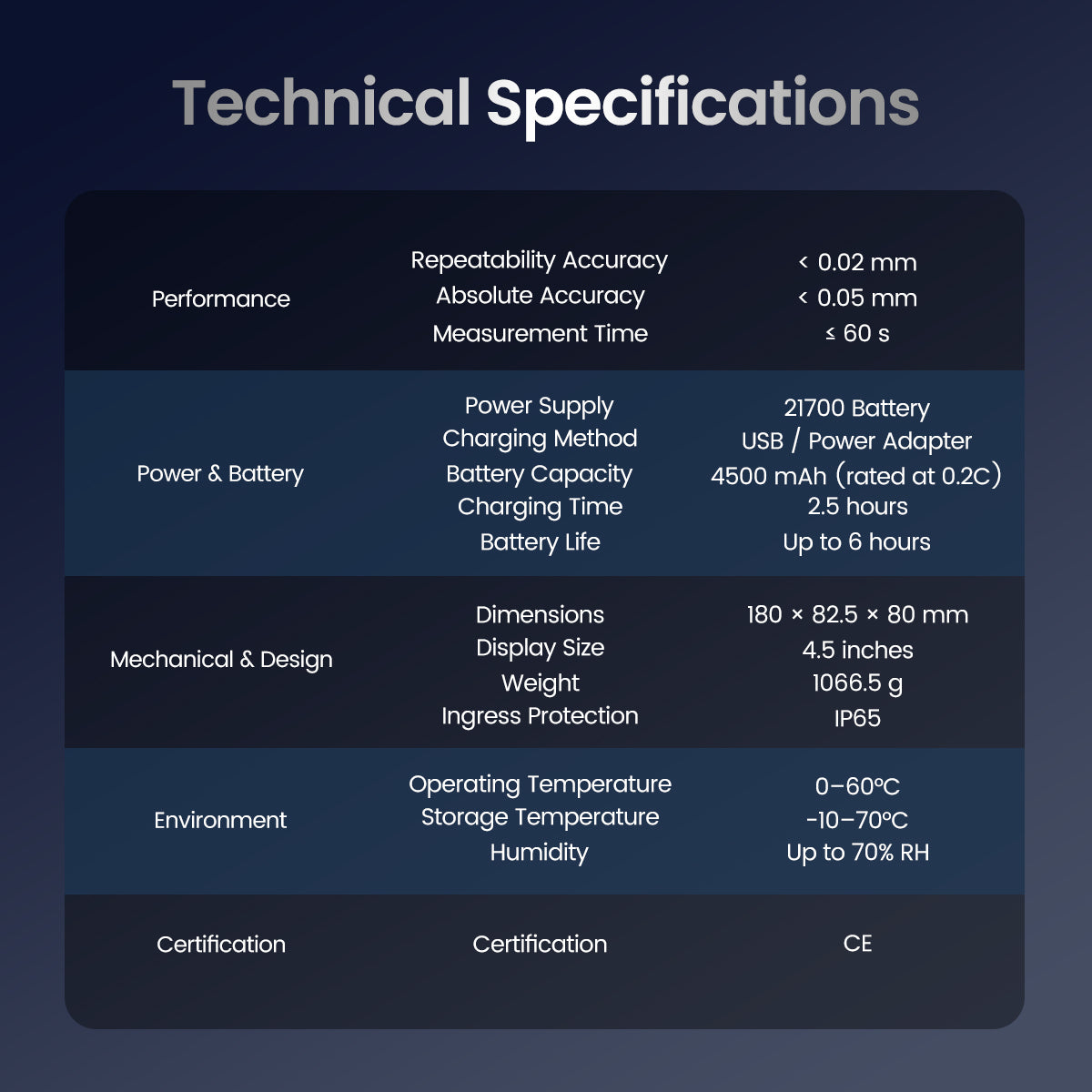

Product Specifications:
| Resolution | 1920 × 1200 |
|---|---|
| Tracking Height | 1 mm |
| Recognition Repeatability | ≤ 0.02 mm |
| Recognition Absolute Accuracy | ≤ 0.05 mm |
| Power Supply | 21700 battery |
| Charging Method | USB, Adapter |
| Battery Capacity | 4500mAh @ 0.2C |
| Power Consumption | <4 W @ 4.2 V DC |
| Dimensions | 180 mm × 80 mm × 82.5 mm (L×W×H) |
| Screen Size | 4.5 inches |
| Weight | Approx. 1 kg |
| Ingress Protection | IP64 |
| Operating Temperature | 0°C — 60°C |
| Ambient Humidity | 0% — 70%RH (non-condensing) |
| Product Certification | CE |
