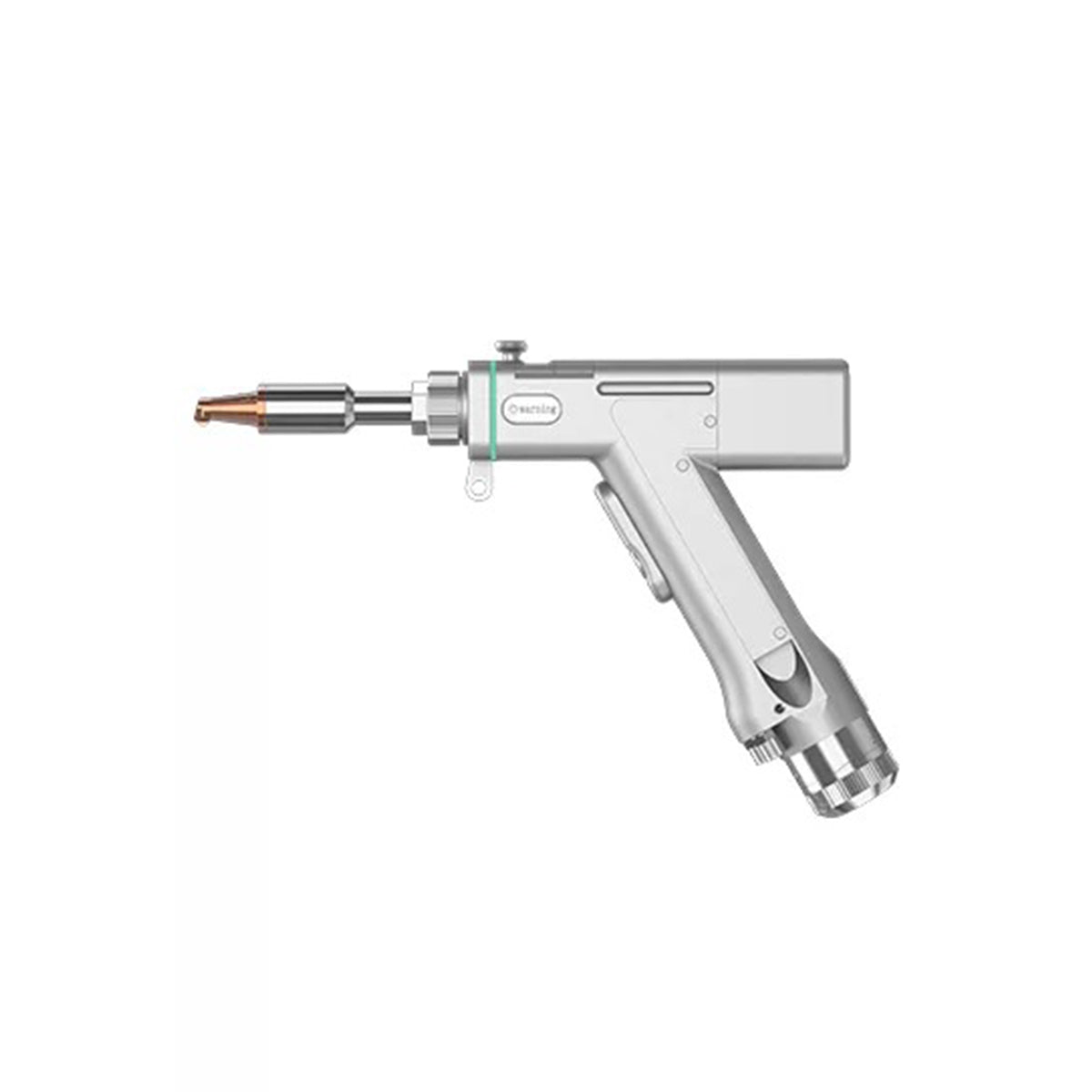

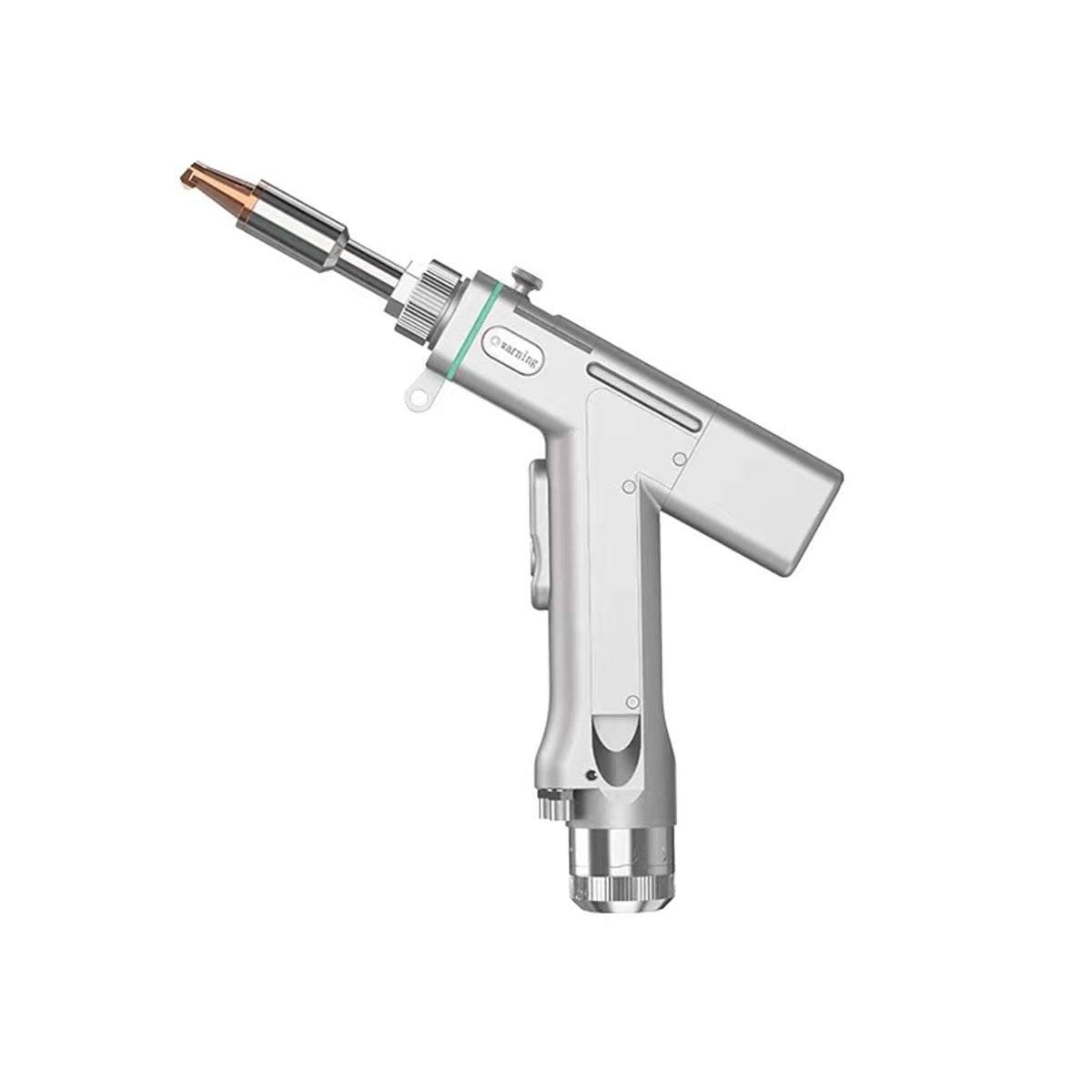

Original SUP23T Laser Welding Gun Multiple Functions Portable Handheld Laser Welder

✅ Lightweight gun body design effectively reduces hand fatigue during prolonged handheld operation
✅ Equipped with a swinging spot function, ensuring uniform weld width and excellent weld bead formation
✅ Supports multiple modes including welding, rust removal, and cleaning—one machine meets the needs of various processes
✅ Drawer-style protective lens design allows for quick lens removal and installation, facilitating daily maintenance
✅ Built-in multi-layered safety monitoring mechanisms effectively mitigate the risk of accidental laser activation

Model: SUP23T（F150)

Maximum compatible laser power: ≤3000W
Collimating lens specifications: D16 F60mm; Focusing lens: D20 F150mm
Compatible laser wavelength: 1070nm fiber laser
Spot size adjustment range: Linear spot 0–8mm
Cooling solution: Built-in integrated water-cooling system

Model: SUP23T（F200)

Maximum compatible laser power: ≤3000W
Collimating lens specifications: D16 F60mm; Focusing lens: D20 F200mm
Compatible laser wavelength: 1070nm fiber laser
Linear spot size adjustment range: 0–8mm
Cooling method: Integrated water-circulation cooling
