RayTools Original Tip Transformer Wire for Fiber Laser

✅ Original Raytools RF coaxial cable design with minimal signal attenuation, ensuring precise transmission of the cutting head’s capacitive height sensing signals
✅ Nickel-plated brass connectors resist oxidation and rust, maintaining stable contact even during frequent assembly and disassembly
✅ High-temperature-resistant braided outer sheath, suitable for the high-temperature electrical control environments of laser equipment during long-term continuous operation
✅ Comprehensive shielding structure that resists electromagnetic interference generated by servo motors and lasers, reducing alarms caused by tracking loss
✅ Standardized connector design that directly matches Jiaqiang’s mainstream medium- to high-power fiber laser cutting heads, ensuring easy installation and removal

Specifications:

Full Product Name: Tip Transformer Wire (TTW) Capacitive Sensing Signal Cable
Application: Transmits capacitive sensing signals from the cutting head nozzle to enable height tracking control
Cable Construction: Shielded coaxial RF cable with an outer high-temperature-resistant nylon braided jacket
Connector Material: Nickel-plated brass base, resistant to oxidation and repeated plugging and unplugging
Impedance Matching: Compatible with Raytools BM109/BM111/BM114/BM115/BT240S series cutting head signal circuits
Operating Temperature: -20°C to +125°C; withstands high-temperature environments inside electrical control cabinets
Electrical Characteristics: Low signal attenuation and resistance to electromagnetic interference, ensuring continuous and stable signal transmission

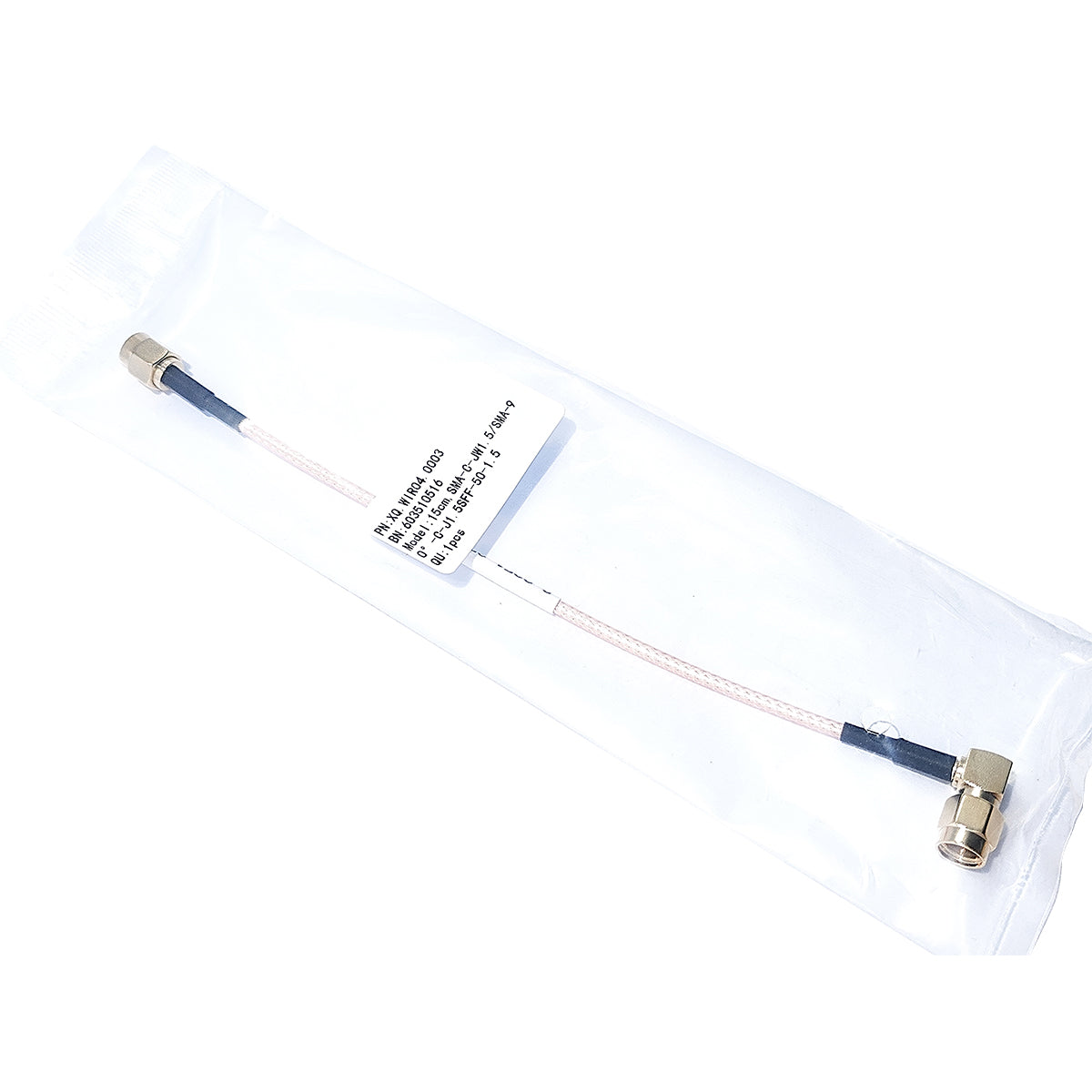

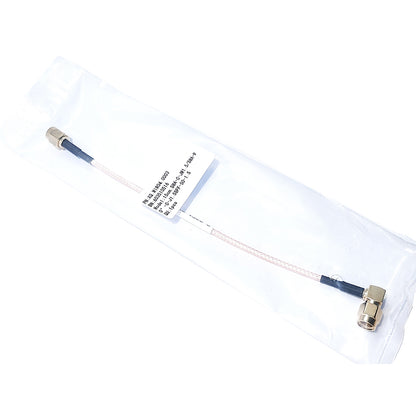

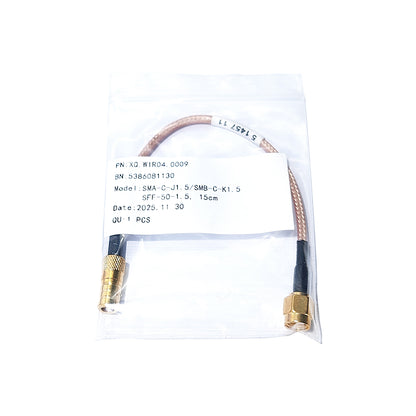

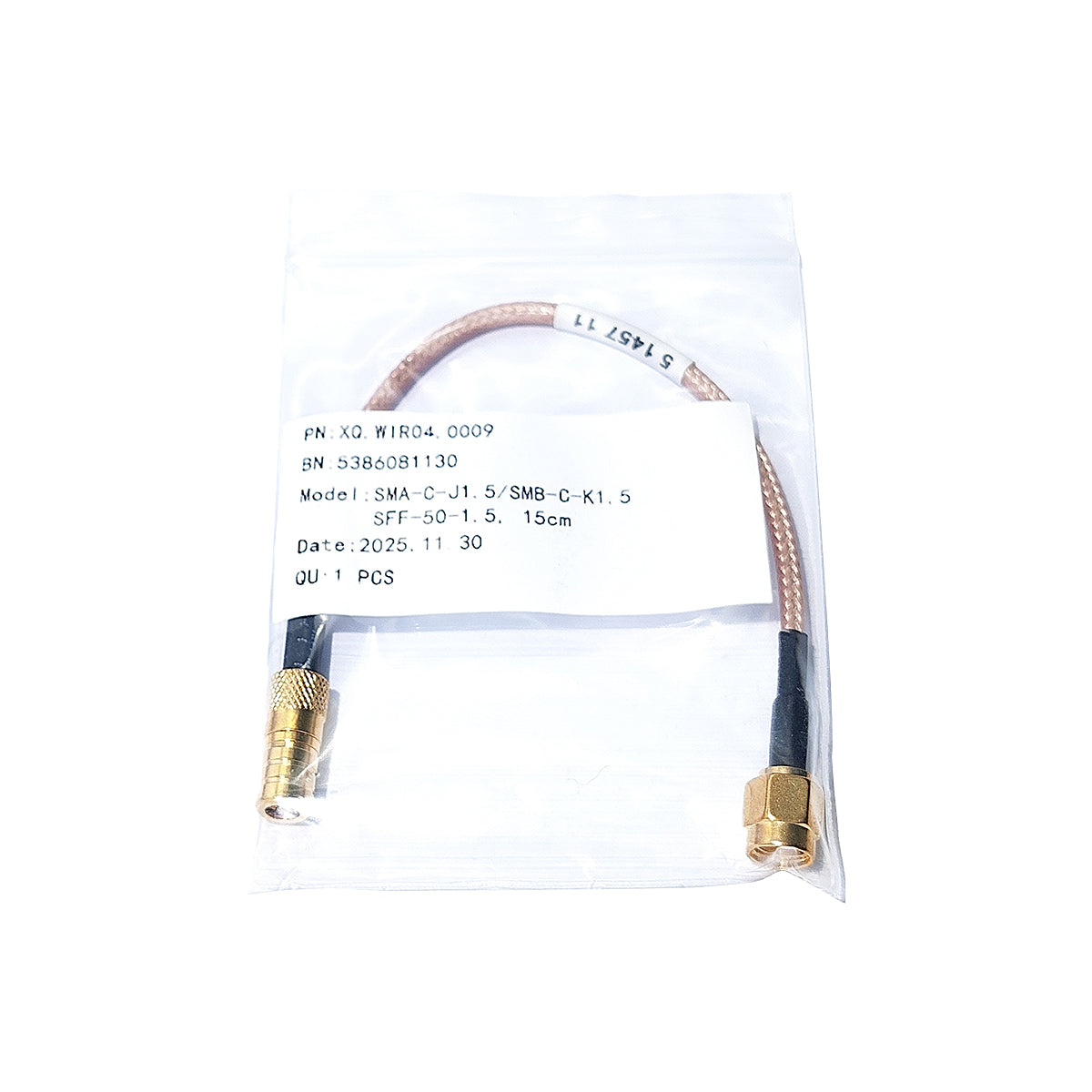

Standard Specifications: 150 mm; connector options include SMB female to SMA male / SMA male to SMA male
