✅ Precision gear grinding process ensures backlash is consistently controlled within 3 arc minutes, guaranteeing the machine tool’s repeatable positioning accuracy
✅ Helical gear meshing structure minimizes transmission shock and reduces noise levels during high-speed reciprocating operation
✅ Dual-aperture adjustable sleeve design accommodates two types of servo motors with different shaft diameters, offering greater spare part compatibility
✅ Pre-filled with sealed, long-lasting synthetic grease; no frequent grease replenishment is required throughout the machine’s service life
✅ Larger housing size provides greater output load-bearing rigidity, making it suitable for heavy-duty feed load applications

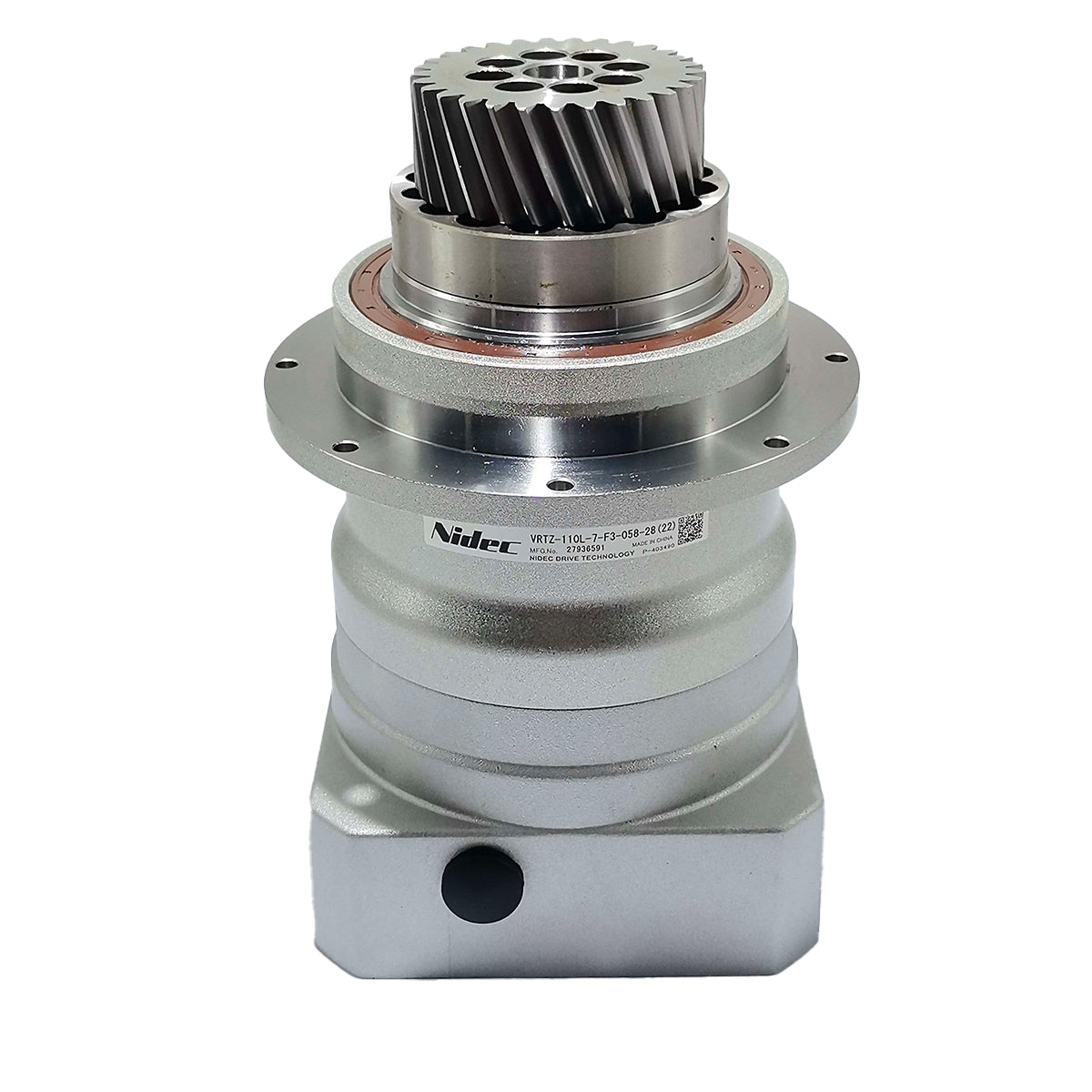

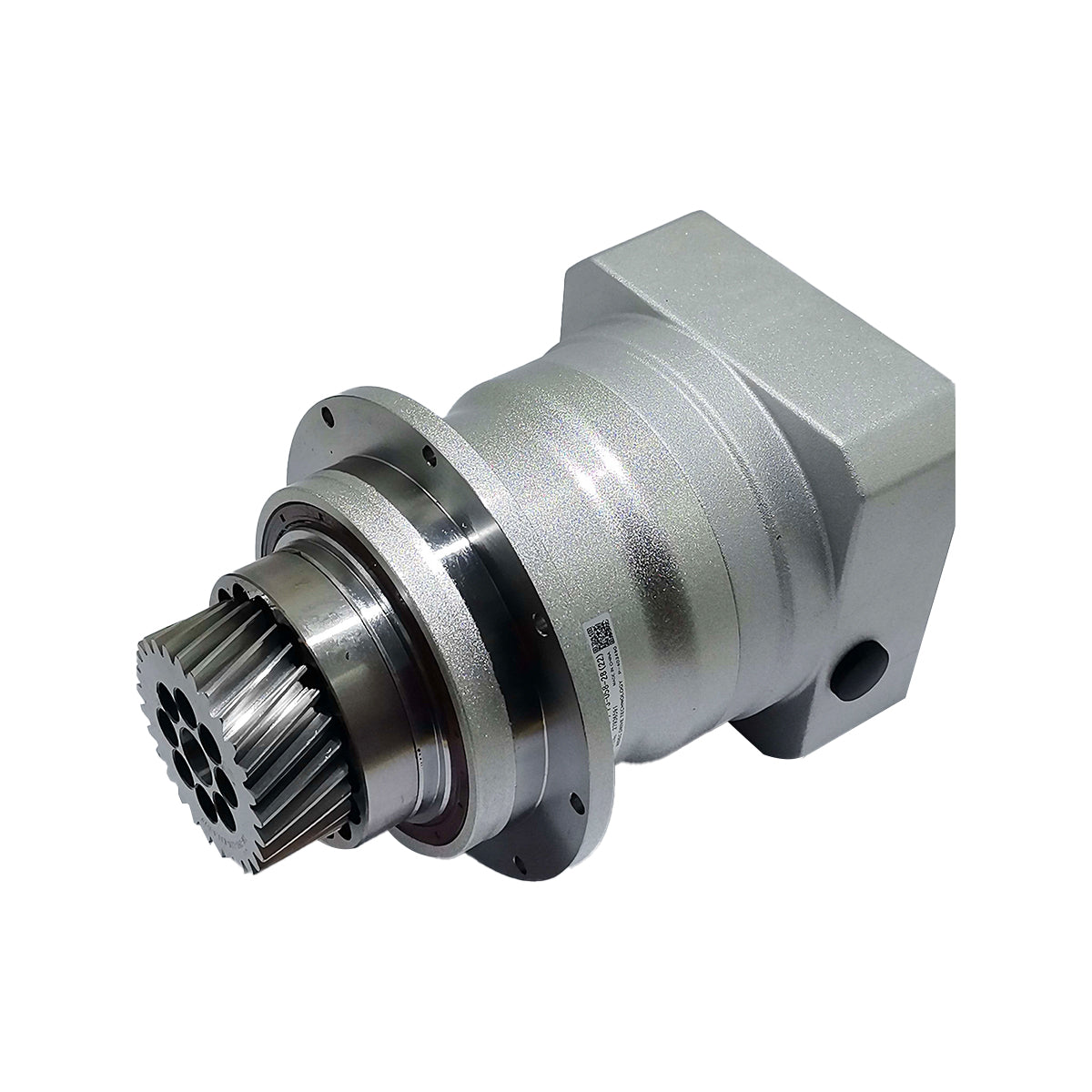

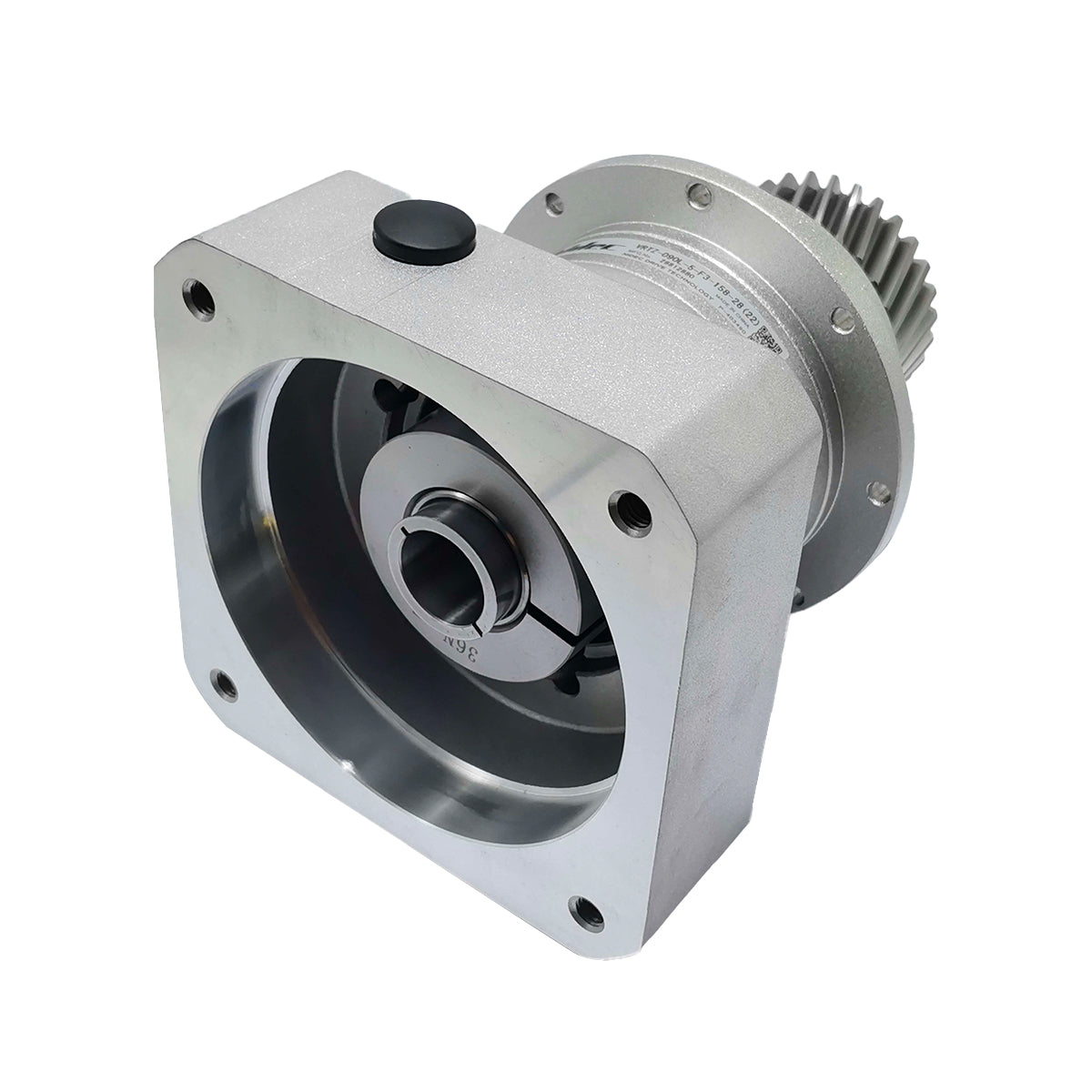

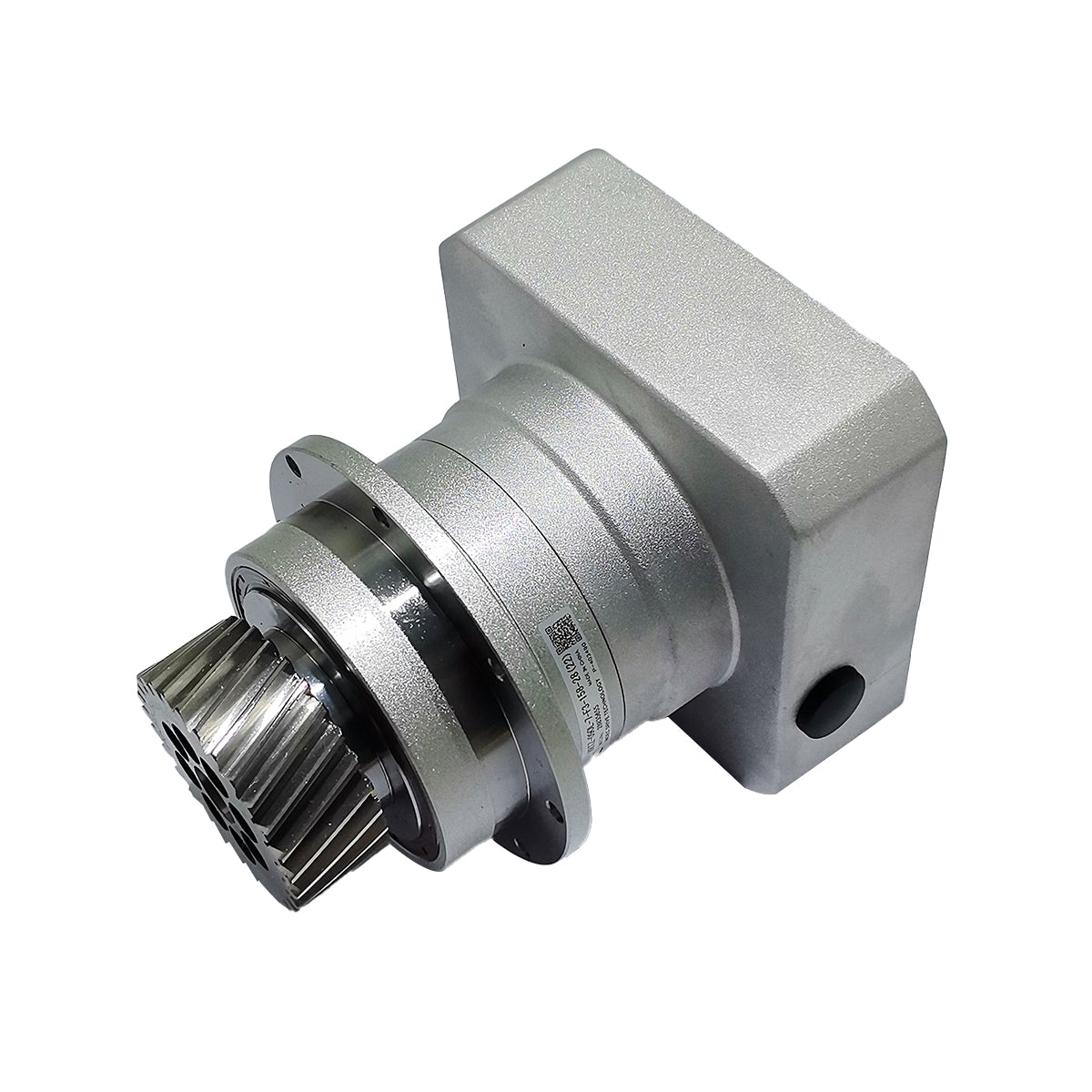

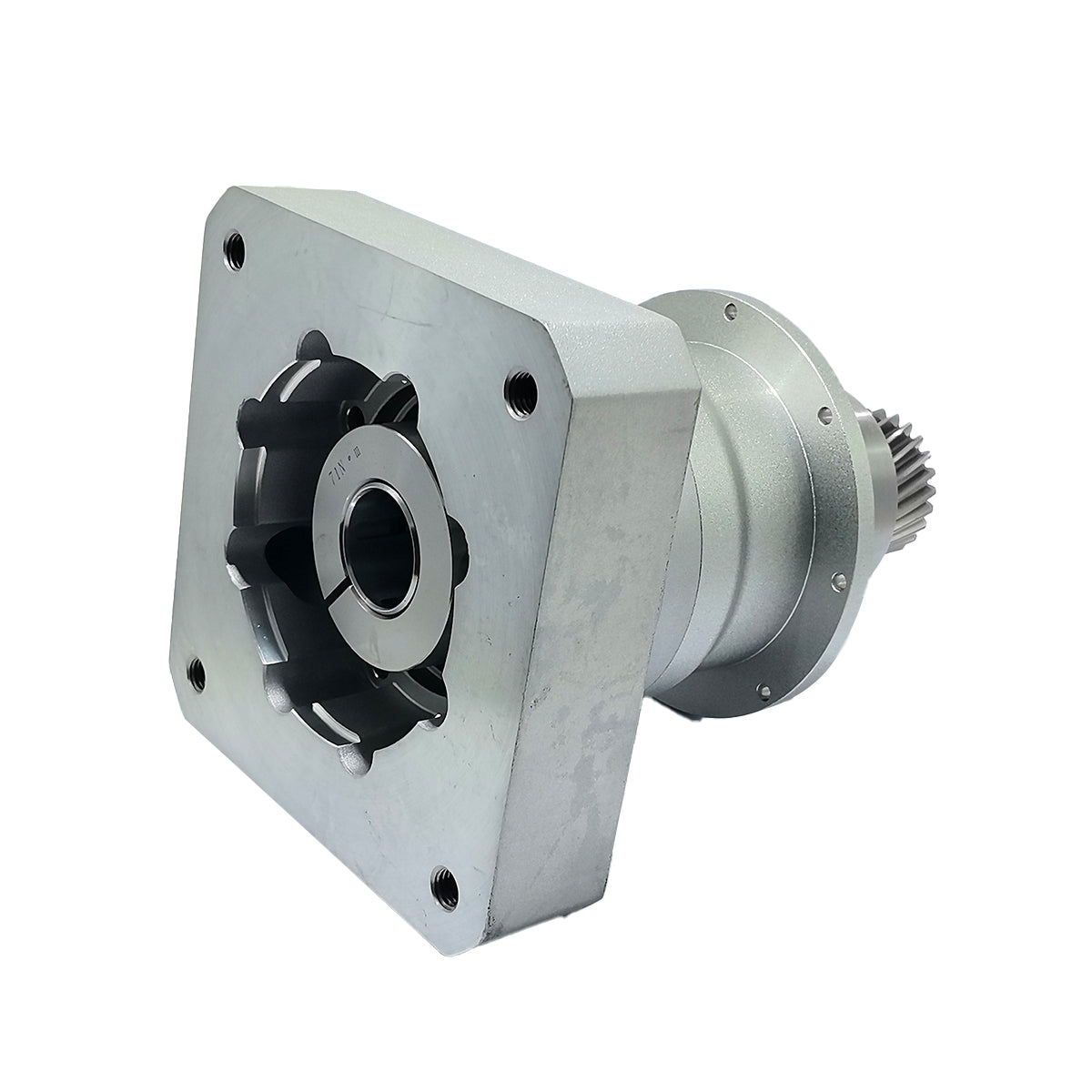

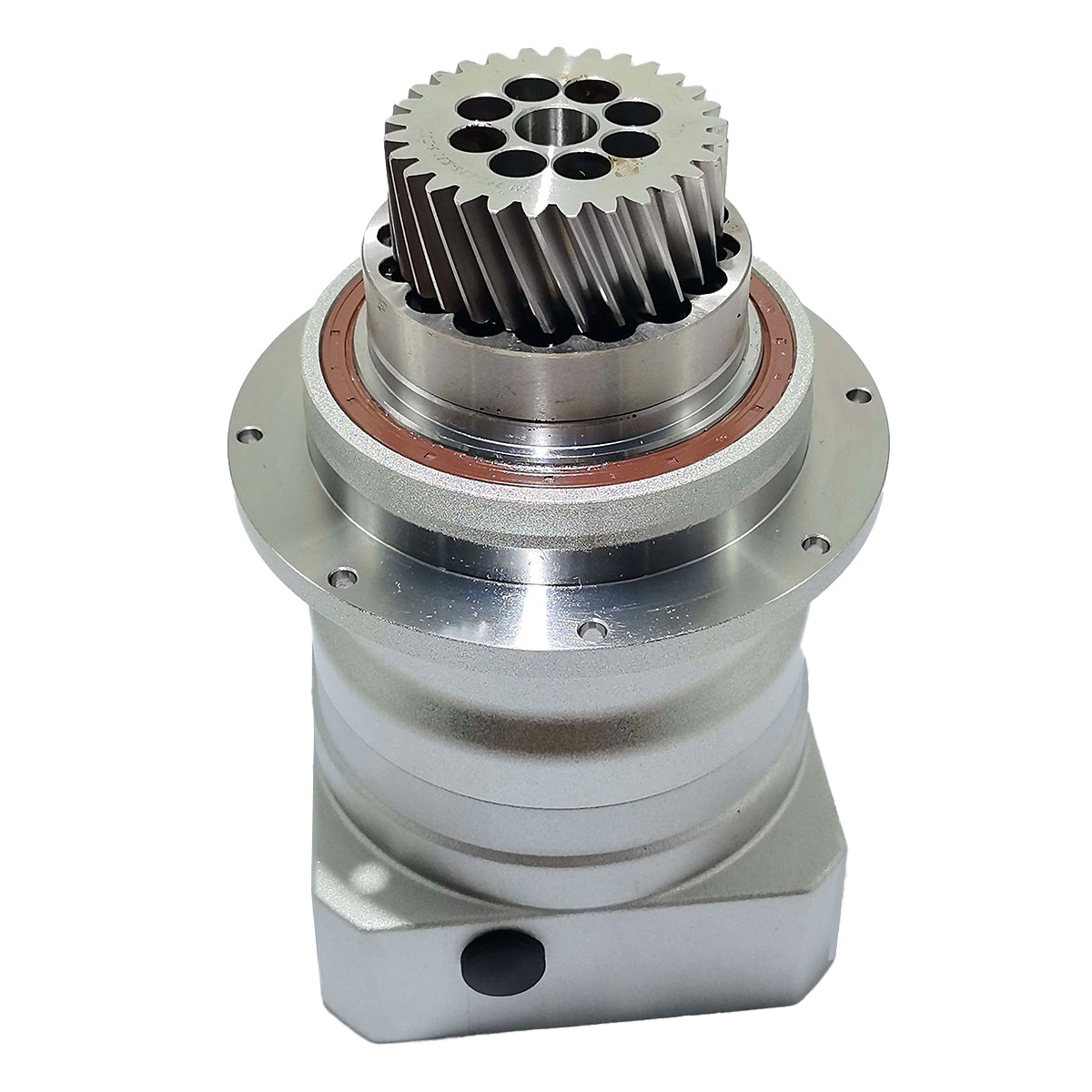

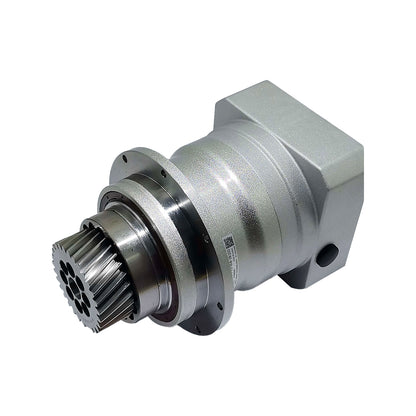

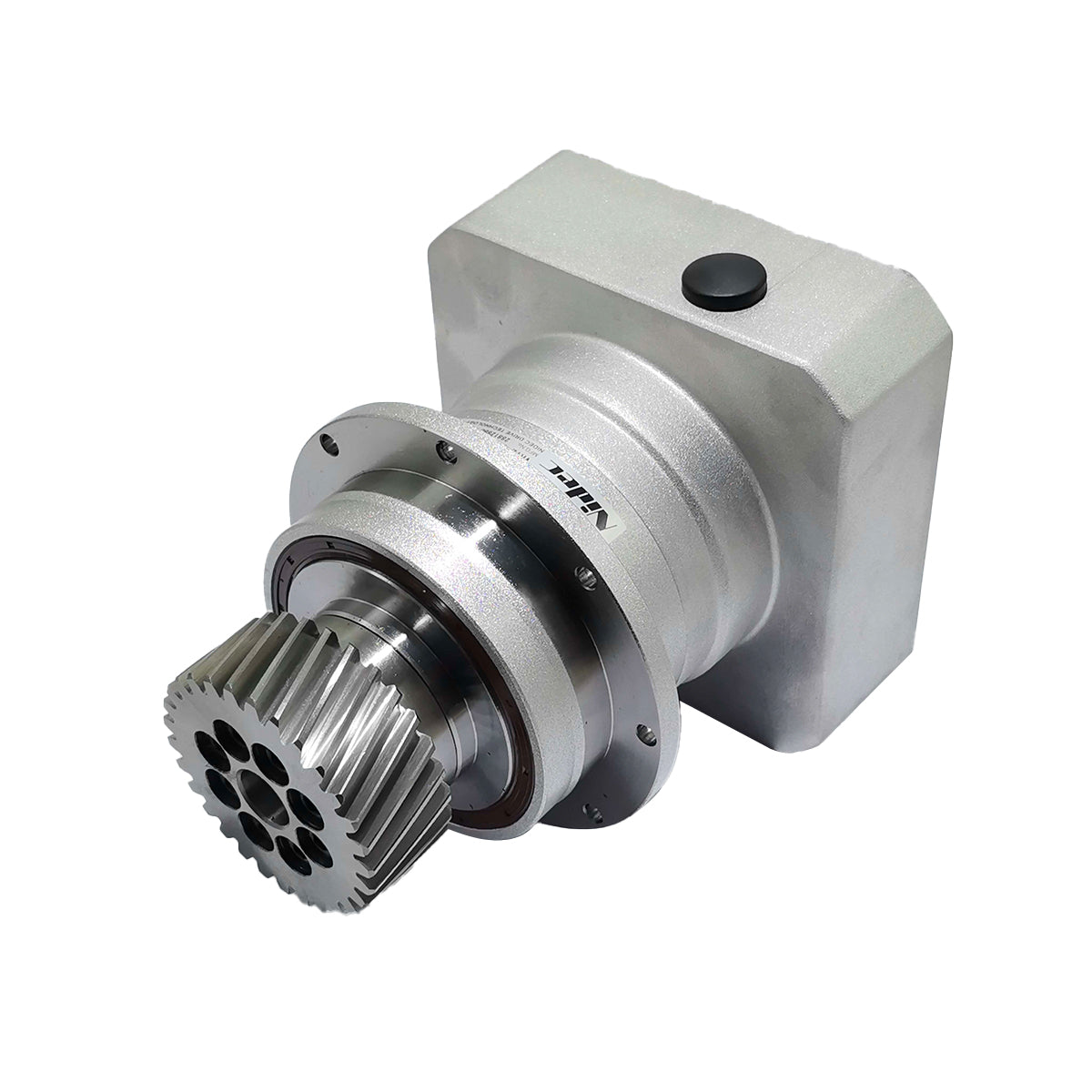

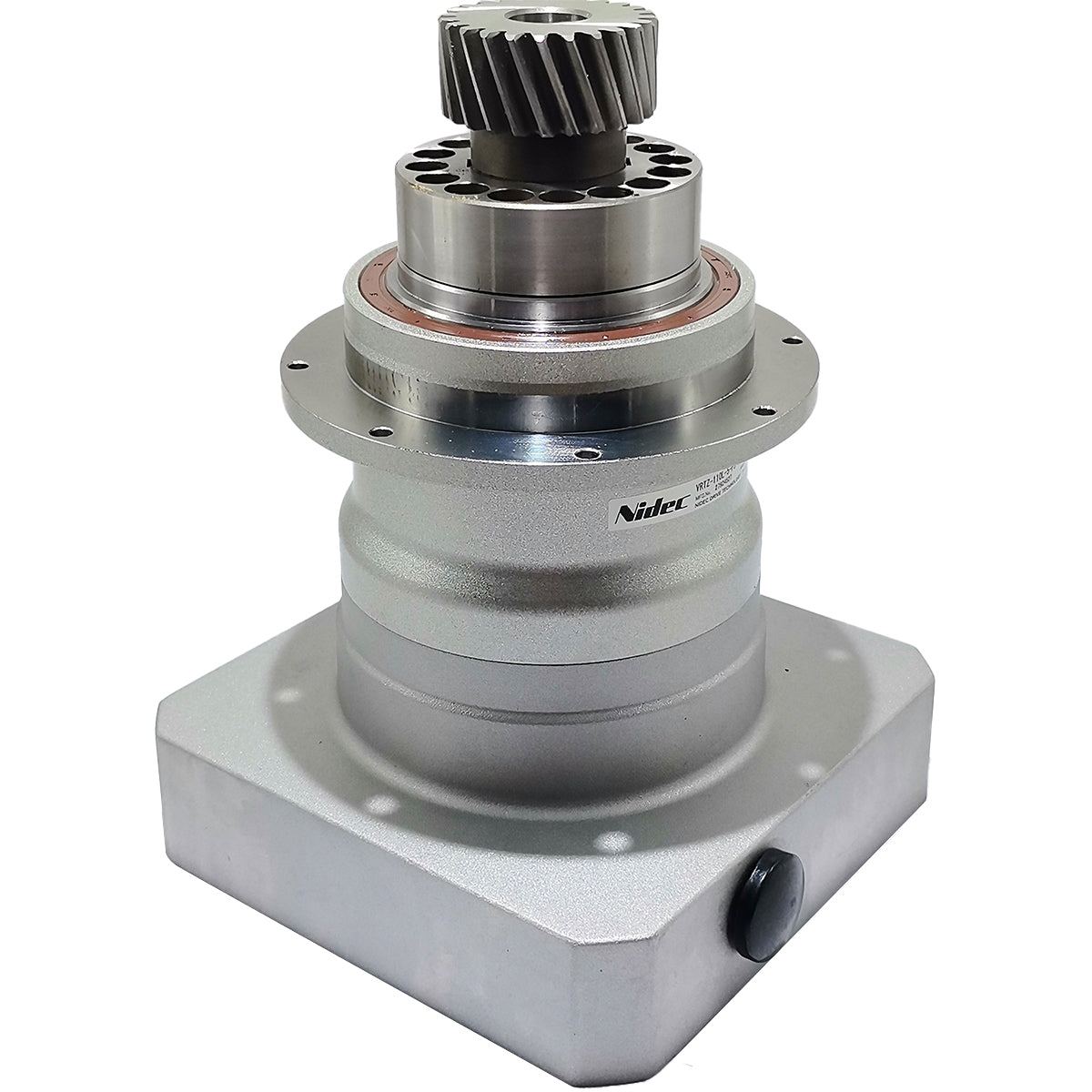

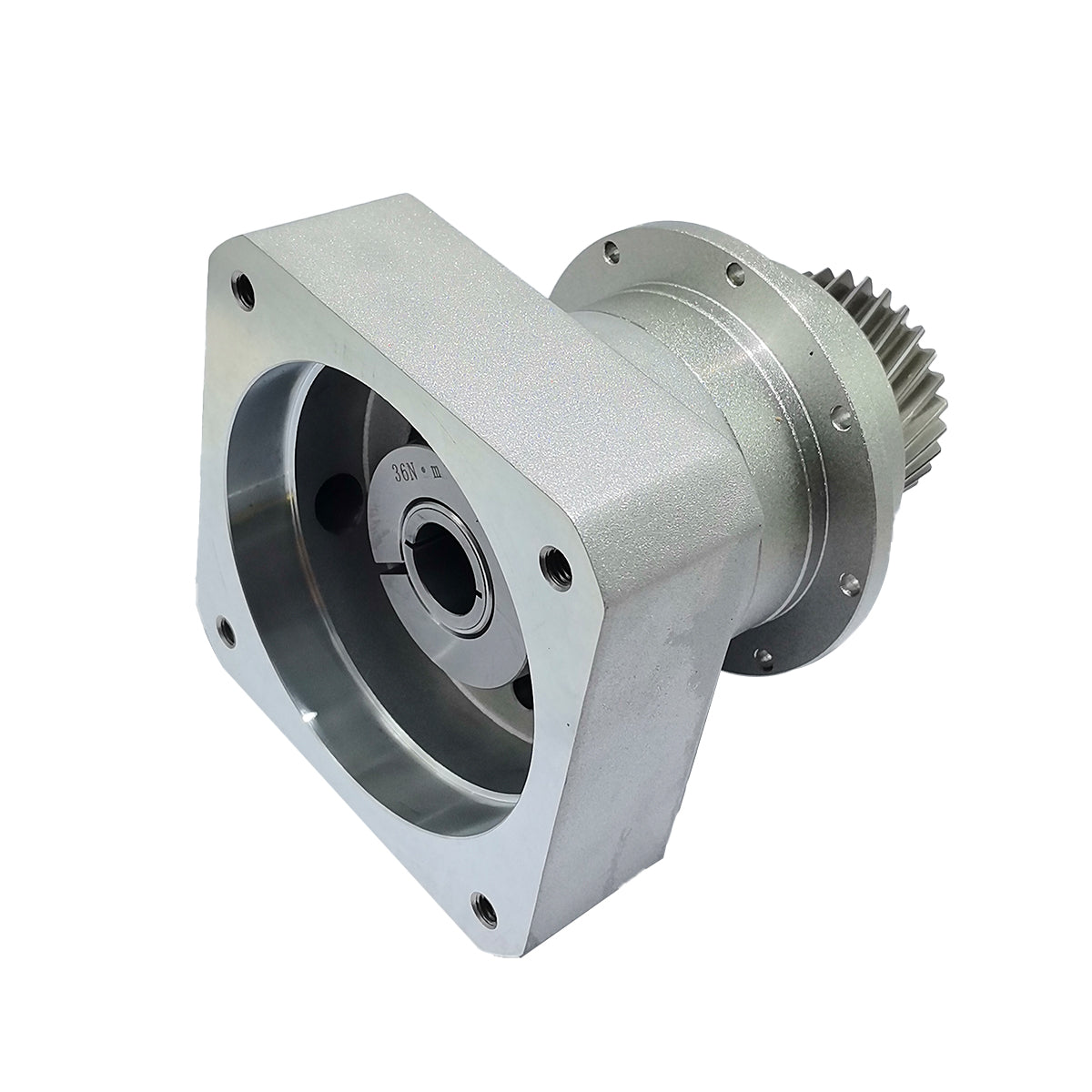

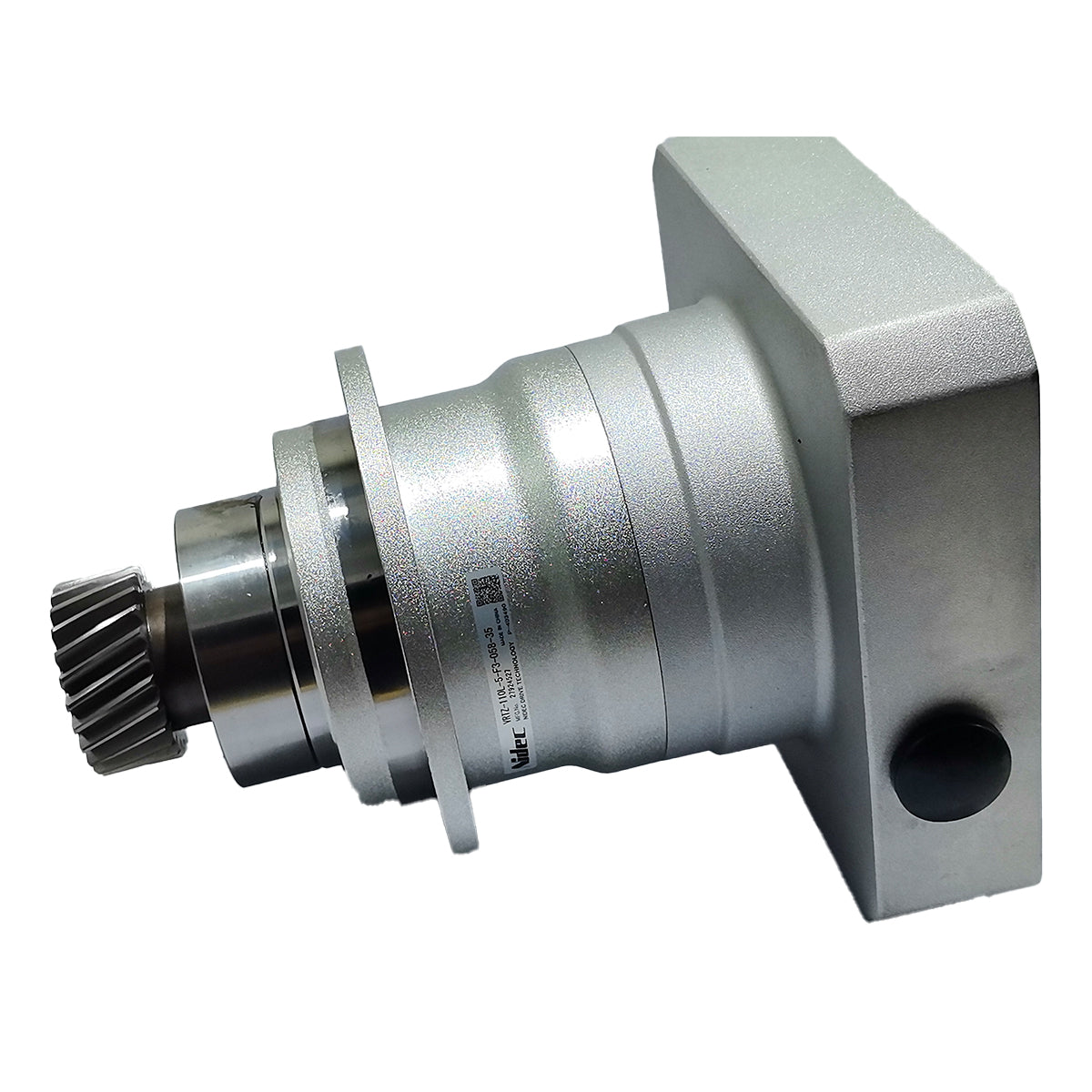

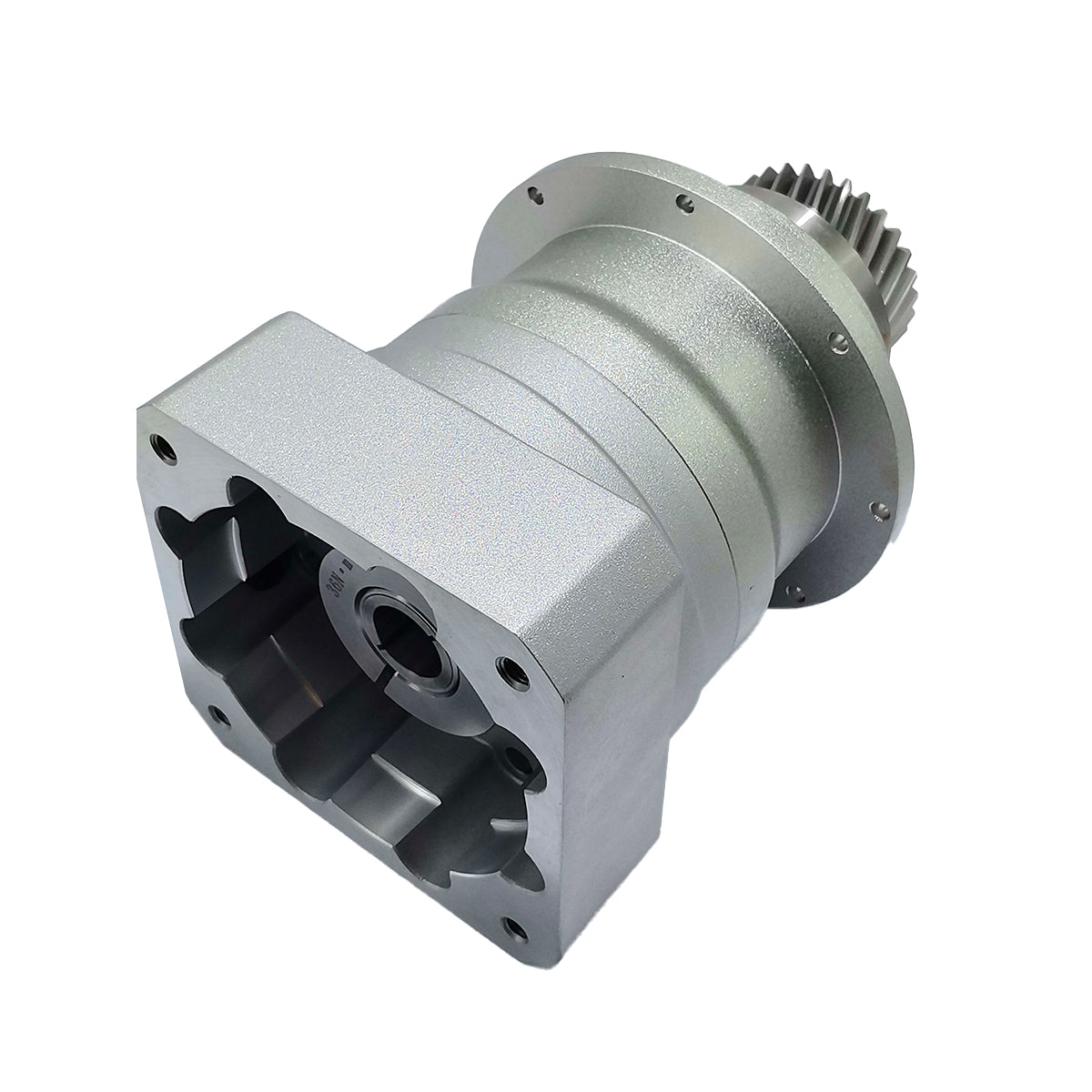

Model: VRTZ-110L-7-F3-158-28(22)+2M-29Z-L42-K31.5-D20
Gear Reduction Configuration: Single-stage helical-tooth planetary coaxial drive layout
Gear Ratio Specifications: 7 standard gear ratios
Input Shaft Diameter: Compatible with both Φ28mm and Φ22mm servo motor shaft diameters
Output Configuration: F3 integrated flange output structure
Maximum short-term input speed: up to 7,500 rpm; continuous rated speed: ≤6,000 rpm; torque capacity exceeds that of the 090L model

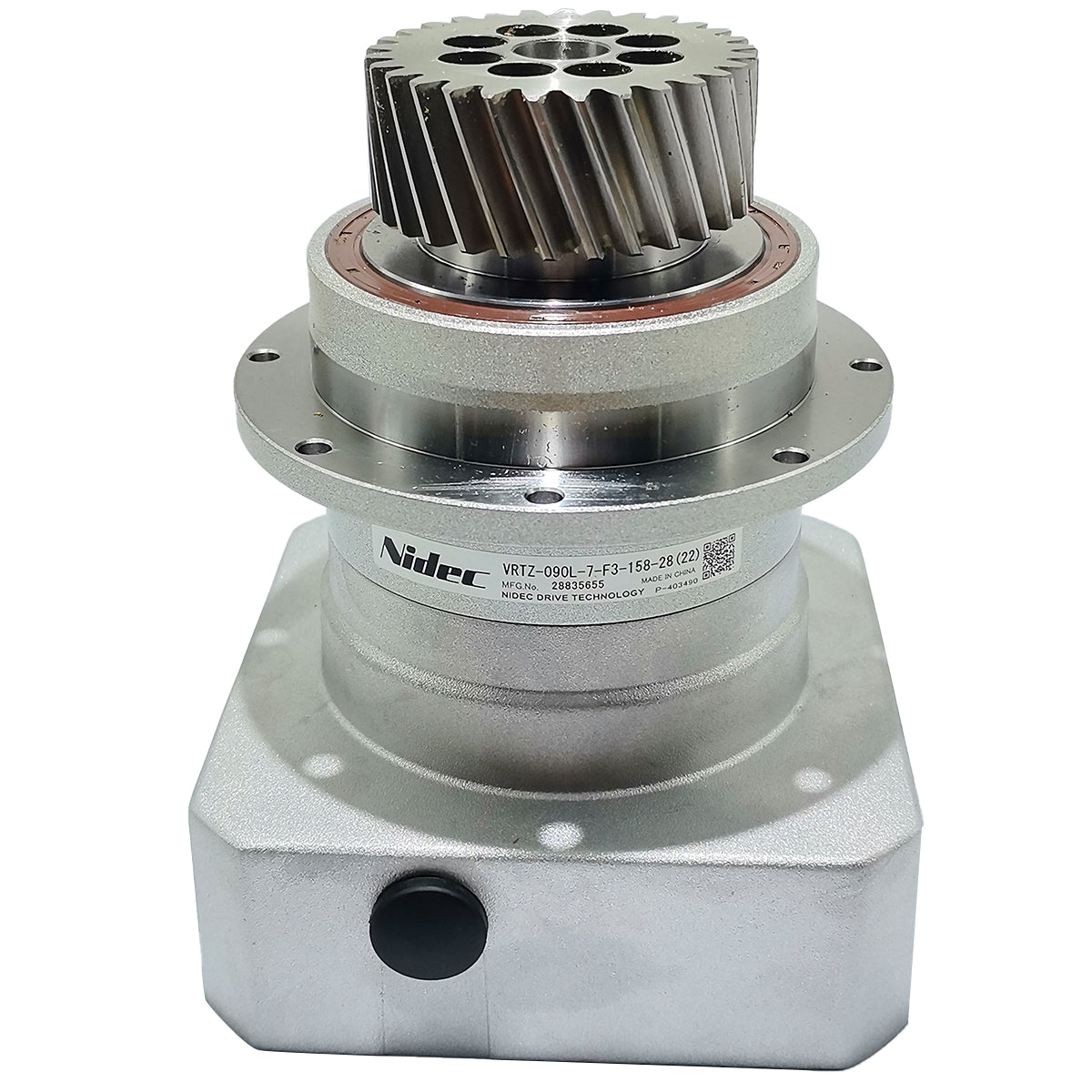

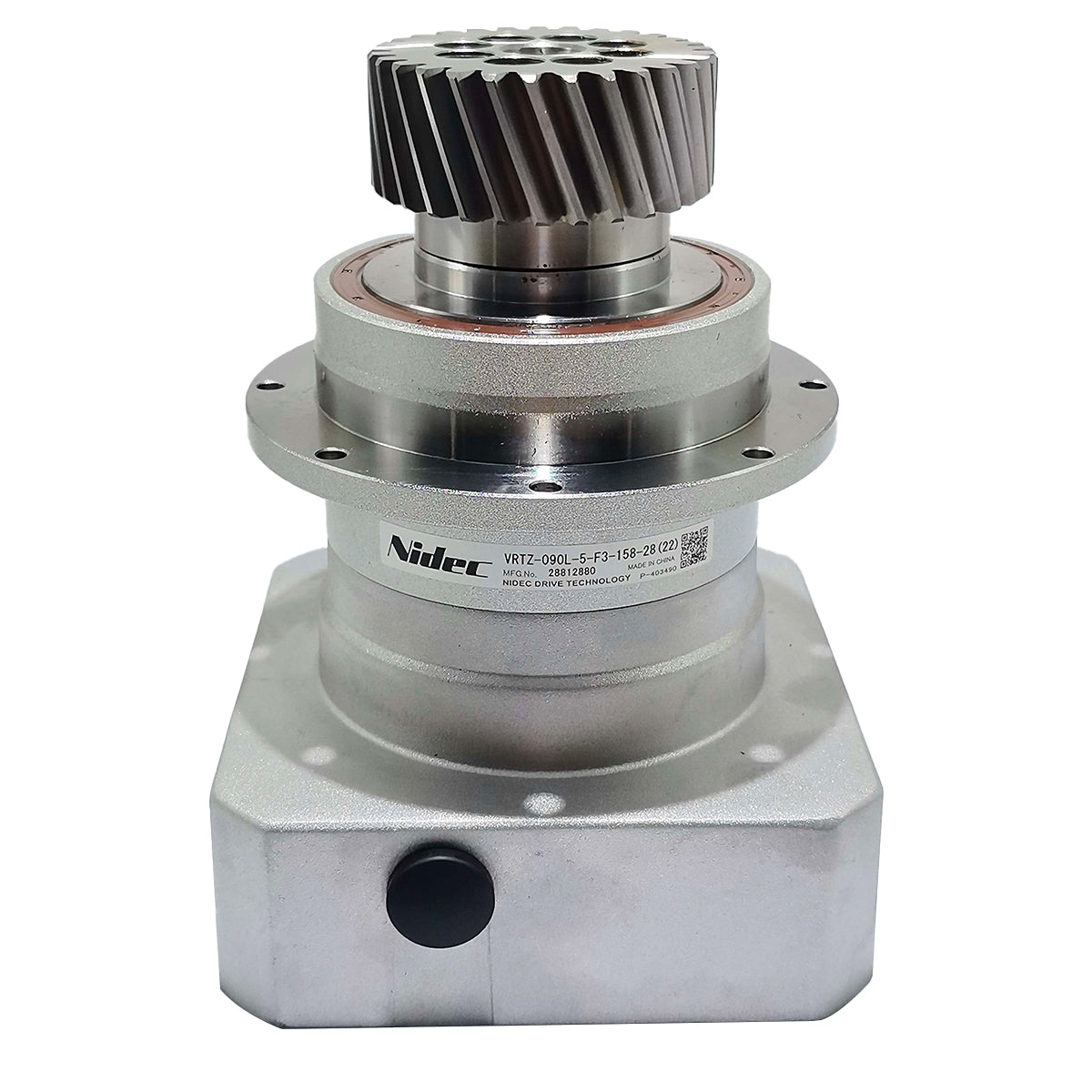

Model: VRTZ-090L-7-F3-158-28(22)+2M-29Z-L26-K31.5-D20
Gear Reduction Configuration: Single-stage helical-tooth planetary coaxial drive layout
Gear Ratio Specifications: 7 standard gear ratios
Input Shaft Diameter: Compatible with both Φ28mm and Φ22mm servo motor shaft diameters
Output Configuration: F3 integrated flange output
Maximum short-term input speed: up to 7,500 rpm; continuous rated speed: ≤6,000 rpm
Model: VRBZ-090L-4-K3-002-28/22+2M-21Z-L44-φ22
Gear Reduction Configuration: Single-stage helical-tooth planetary gearset
Gear Ratio Options: 4 gear ratio specifications
Input Shaft Diameter: Compatible with Φ28/Φ22 dual-specification servo shafts
Output Configuration: K3 flat-keyed output shaft design
Overall Length: Standard L44 axial mounting dimension
Model: VRT-110C-5-F3-38KA35-114.3-200-M12
Gear Reduction Structure: Single-stage planetary gear layout
Gear Ratio Configurations: 5 gear ratio specifications
Output Type: F3 flange-type output structure
Servo Adapter Interface: 38KA35 motor-matched standard sleeve
Fastening Standard: Secured with M12 bolt
Model: VRTZ-090L-5-F3-032-28-110-145-M8
Gear Ratio Configuration: 5 gear ratios
Output Type: F3 flange-type output
Input Shaft Diameter: Φ28 mm (servo motor compatible shaft diameter)
Motor Mounting Flange: 110 × 145 mm (standard mounting dimensions)
Fastening Standard: Secured with M8 bolts
